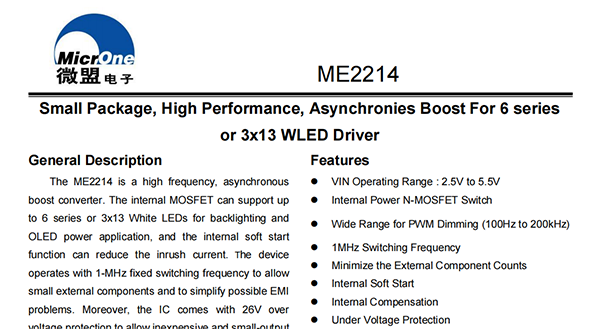

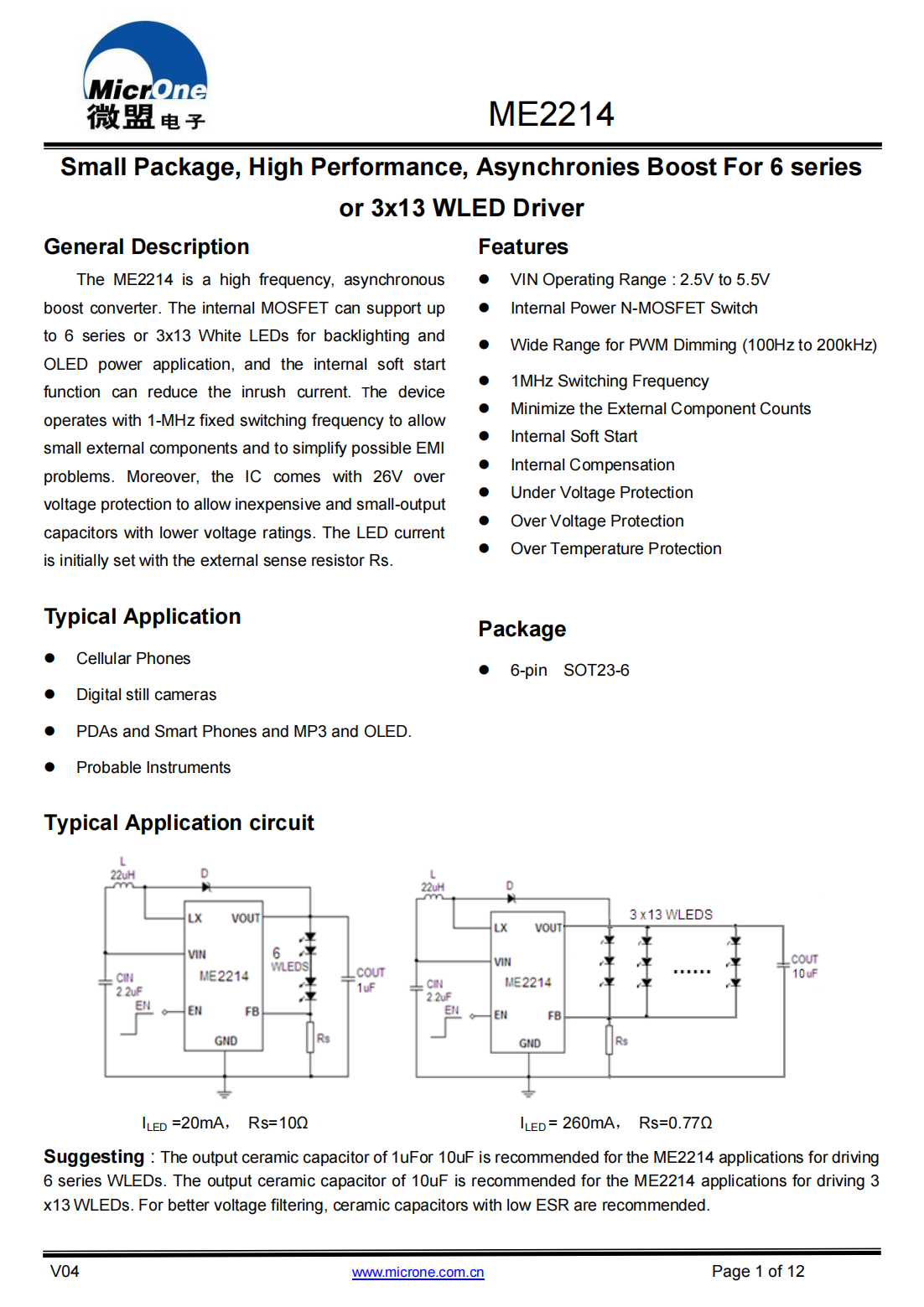

General Description

The ME2214 is a high frequency,asynchronous boost converter.The internal MOSFET can support up to 6 series or 3x13 White LEDs for backlighting and OLED power application,and the internal soft startfunction can reduce the inrush current.The device operates with 1-MHz fixed switching frequency to allow small external components and to simplify possible EMI problems.Moreover,the IC comes with 26V over voltage protection to allow inexpensive and small-output capacitors with lower voltage ratings.The LED current is initially set with the external sense resistor Rs.

Features

VIN Operating Range:2.5V to 5.5V

Internal Power N-MOSFET Switch

Wide Range for PWM Dimming(100Hz to 200kHz)

1MHz Switching Frequency

Minimize the External Component Counts

Internal Soft Start

Internal Compensation

Under Voltage Protection

Over Voltage Protection

Over Temperature Protection
