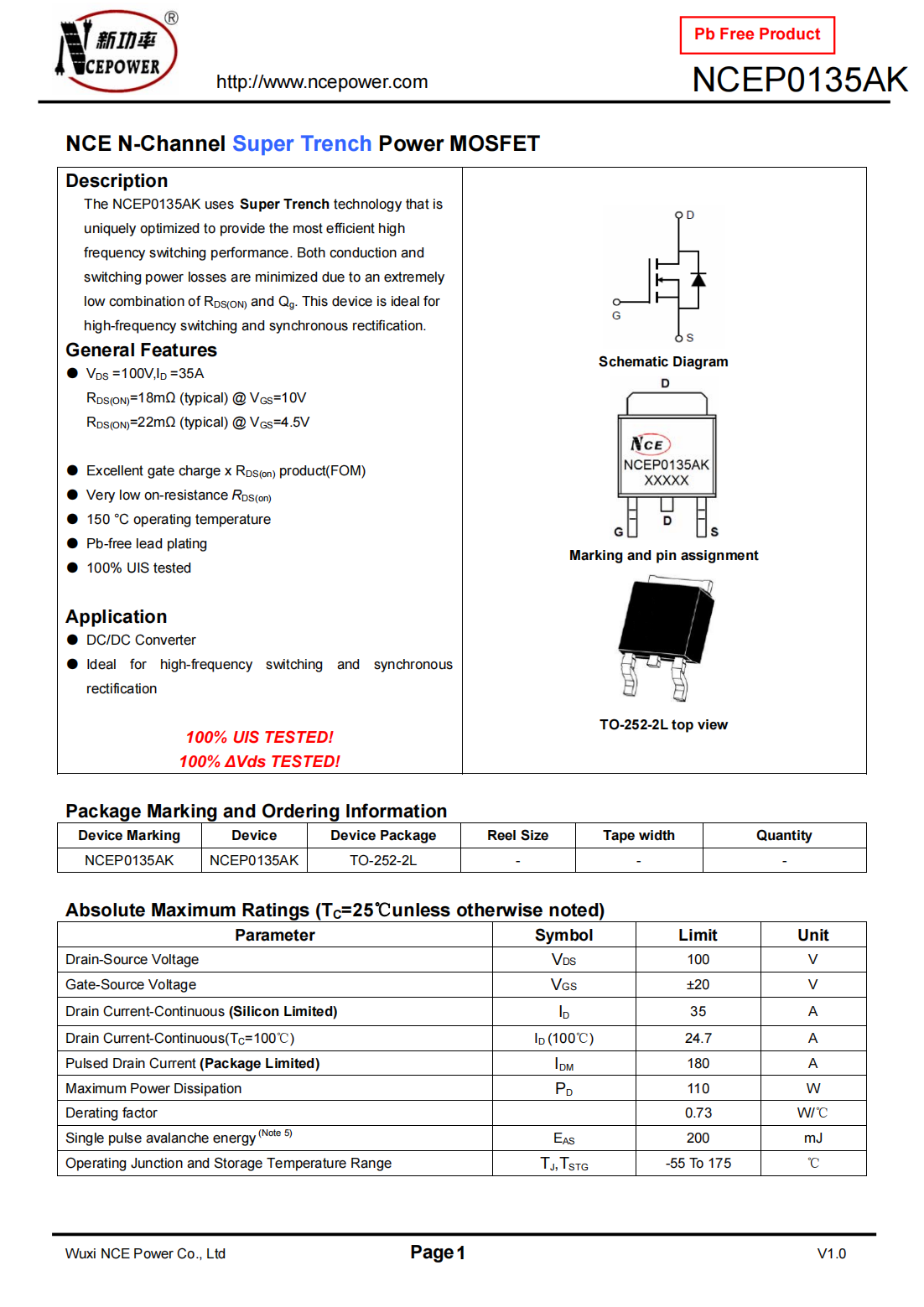

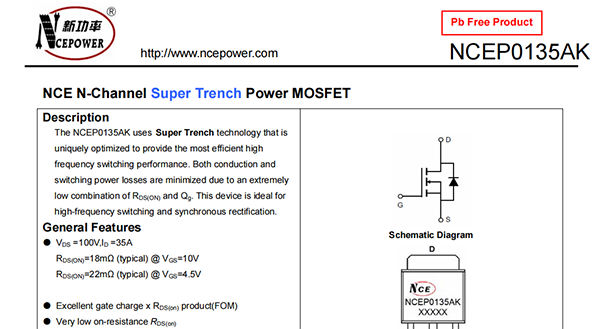

Description

The NCEP0135AK uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance.Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON)and Qg.This device is ideal for high-frequency switching and synchronous rectification.

General Features

●VDS=100V,ID=35A

RDS(ON)=18mΩ(typical) VGS=10V

RDS(ON)=22mΩ(typical) VGS=4.5V

●Excellent gate charge x RDS(on)product(FOM)

●Very low on-resistance RDS(on)

●150°C operating temperature

●Pb-free lead plating

●100%UIS tested

Application

●DC/DC Converter

●Ideal for high-frequency switching and synchronous rectification
