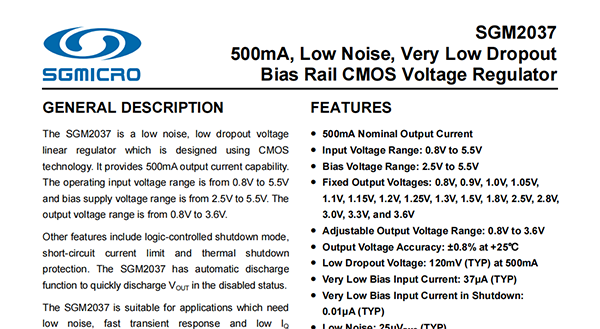

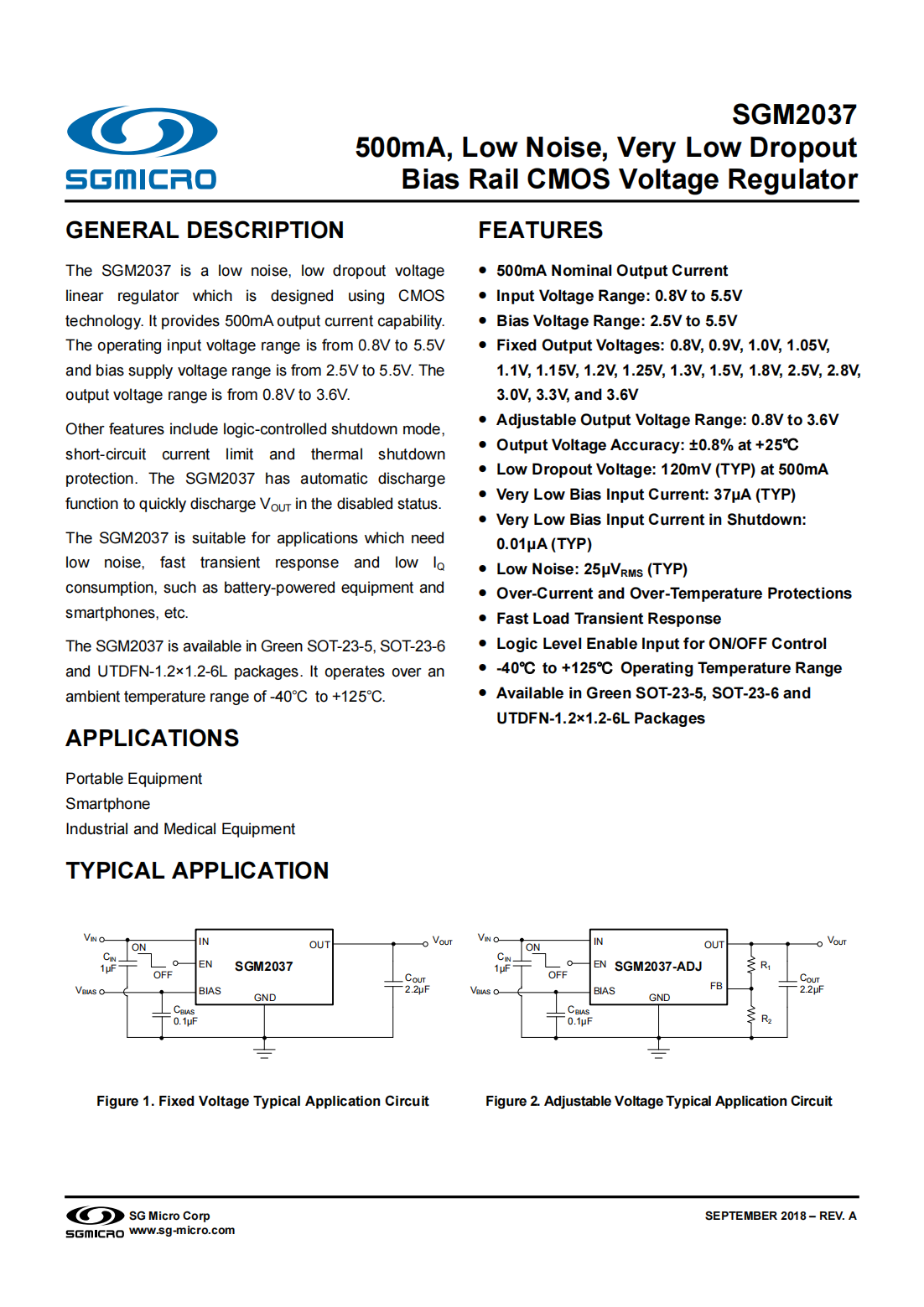

GENERAL DESCRIPTION

The SGM2037 is a low noise,low dropout voltage linear regulator which is designed using CMOS technology.It provides 500mA output current capability.

The operating input voltage range is from 0.8V to 5.5V and bias supply voltage range is from 2.5V to 5.5V.The output voltage range is from 0.8V to 3.6V.Other features include logic-controlled shutdown mode,short-circuit current limit and thermal shutdown protection.The SGM2037 has automatic discharge function to quickly discharge VOUT in the disabled status.

The SGM2037 is suitable for applications which needlow noise,fast transient response and low IQconsumption,such as battery-powered equipment andsmartphones,etc.

The SGM2037 is available in Green SOT-23-5,SOT-23-6 and UTDFN-1.2×1.2-6L packages.It operates over an ambient temperature range of-40℃to+125℃.
