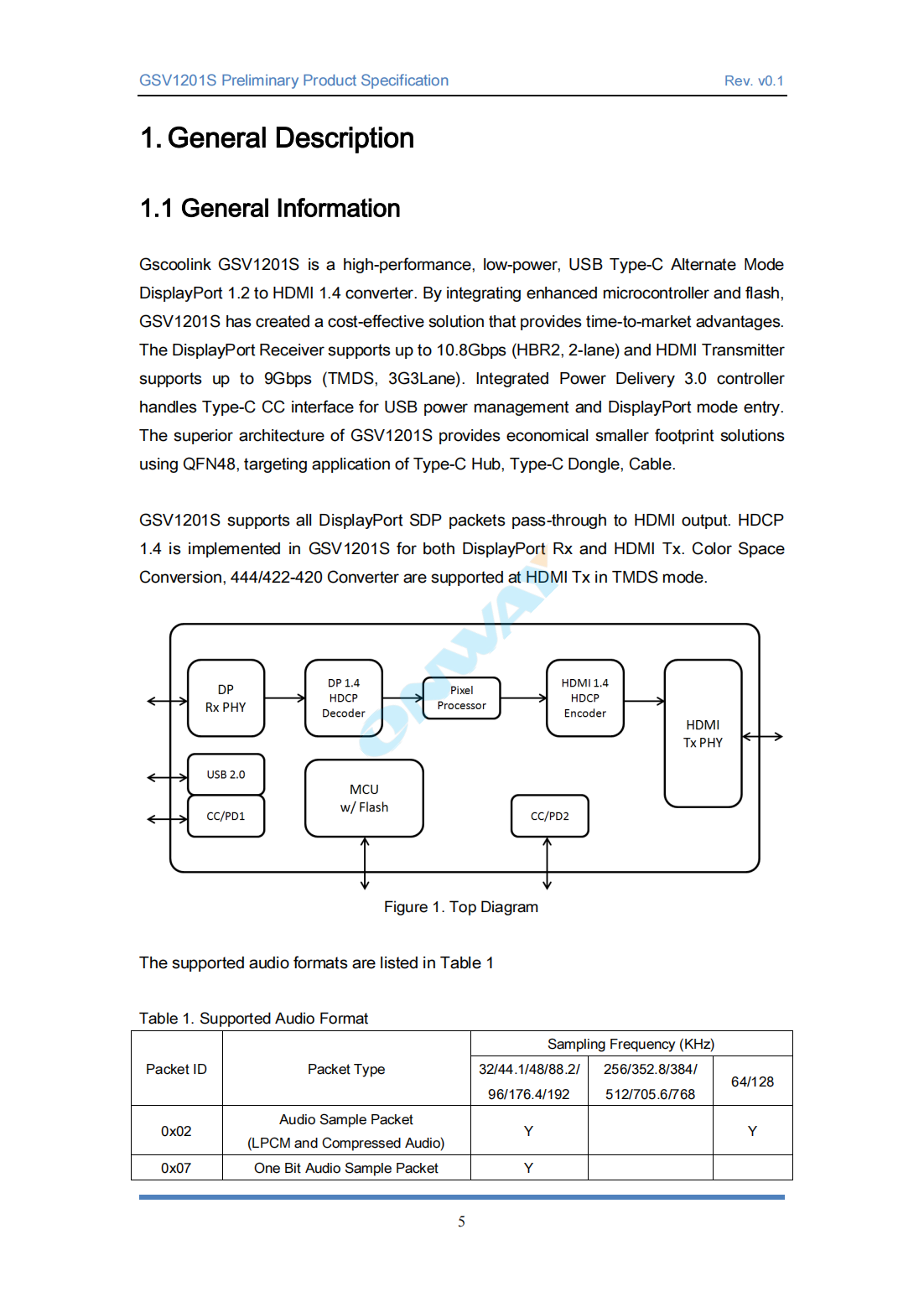

General Information

Gscoolink GSV1201S is a high-performance,low-power,USB Type-C Alternate Mode DisplayPort 1.2 to HDMI 1.4 converter.By integrating enhanced microcontroller and flash,GSV1201S has created a cost-effective solution that provides time-to-market advantages.

The DisplayPort Receiver supports up to 10.8Gbps(HBR2,2-lane)and HDMI Transmitter supports up to 9Gbps(TMDS,3G3Lane).Integrated Power Delivery 3.0 controller handles Type-C CC interface for USB power management and DisplayPort mode entry.

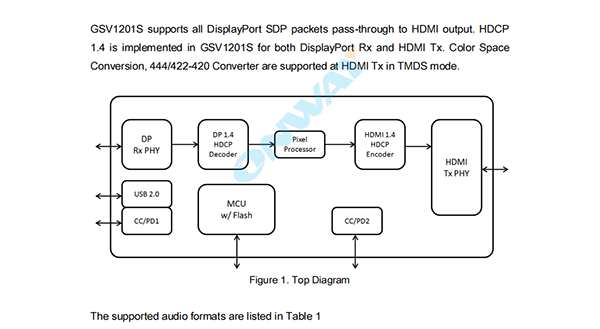

The superior architecture of GSV1201S provides economical smaller footprint solutionsusing QFN48,targeting application of Type-C Hub,Type-C Dongle,Cable.GSV1201S supports all DisplayPort SDP packets pass-through to HDMI output.HDCP 1.4 is implemented in GSV1201S for both DisplayPort Rx and HDMI Tx.Color Space Conversion,444/422-420 Converter are supported at HDMI Tx in TMDS mode.
