BL321_贝岭代理商_中压通用运算放大器
The BL321 brings performance and economy to low power systems. With a high unity gain frequency and a guaranteed 0.4V/µs slew rate, the quiescent current is only 430µA/amplifier (5V)
  • Gain-Bandwidth product: 1MHz
  • Low supply current: 430µA
  • Low input bias current: 45nA
  • Wide supply voltage range: +3V to +25V
详细内容

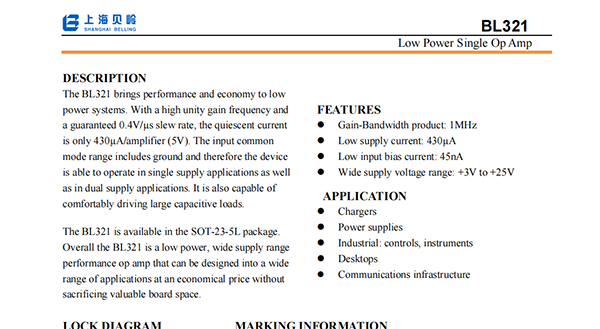

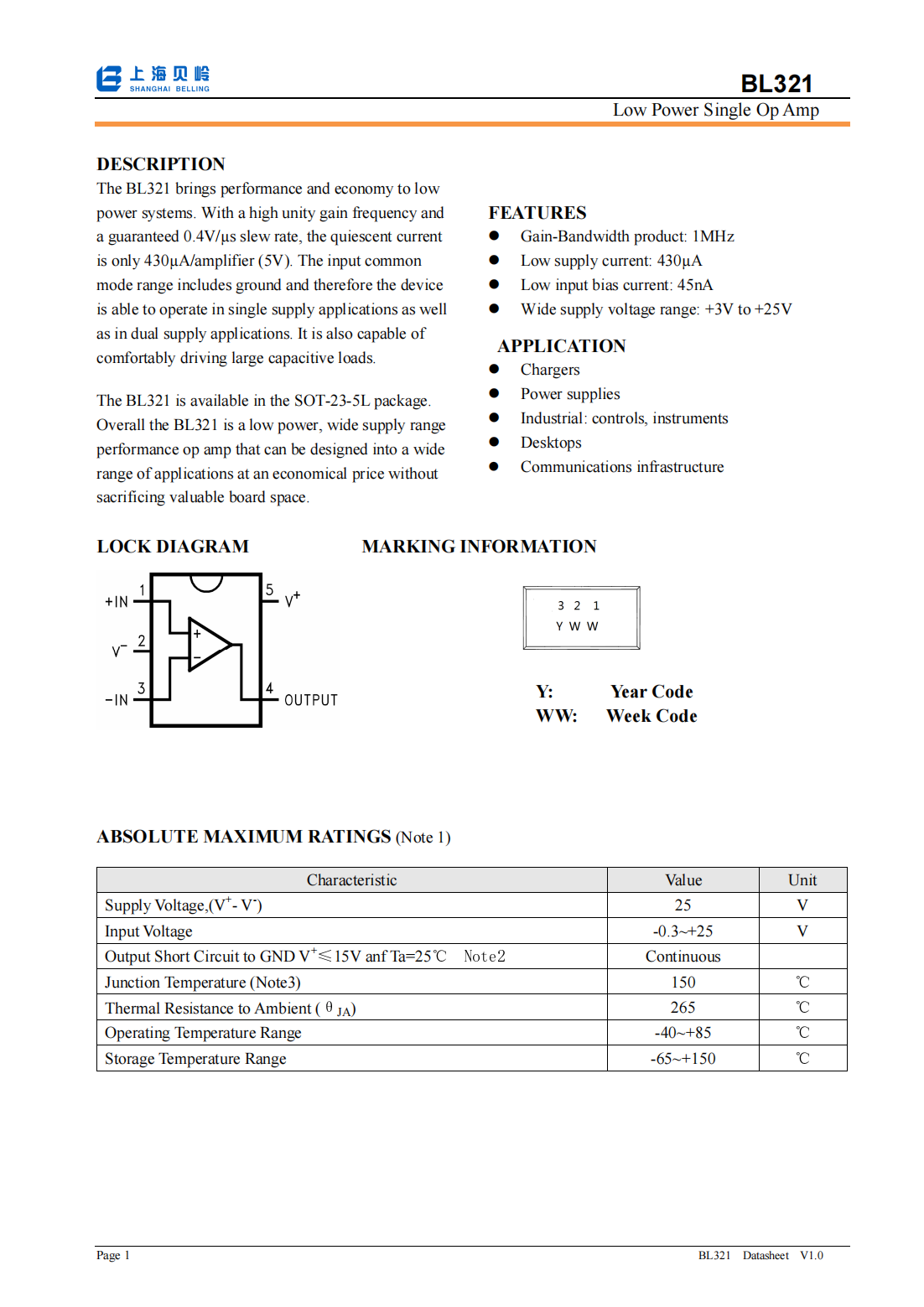

DESCRIPTION

The BL321 brings performance and economy to low power systems.With a high unity gain frequency anda guaranteed 0.4V/µs slew rate,the quiescent current is only 430µA/amplifier(5V).The input common mode range includes ground and therefore the deviceis able to operate in single supply applications as well as in dual supply applications.It is also capable of comfortably driving large capacitive loads.

The BL321 is available in the SOT-23-5L package.Overall the BL321 is a low power,wide supply rangeperformance op amp that can be designed into a widerange of applications at an economical price without sacrificing valuable board space.

FEATURES

Gain-Bandwidth product:1MHz

Low supply current:430µA

Low input bias current:45nA

Wide supply voltage range:+3V to+25V

APPLICATION

Chargers

Power supplies

Industrial:controls,instruments

Desktops

Communications infrastructure
