LP3202_1.5MHz, 650mA降压型DC/DC
The LP3202 is a constant frequency, current mode, PWM step-down converter
  • High Efficiency: 93%
  • 1.5MHz Fixed-Frequency PWM Operation
  • Adjustable Output From 0.6V to VIN
  • 1.2V, 1.5V, 1.8V, 2.5V, 2.8V and 3.3V Fixed
详细内容

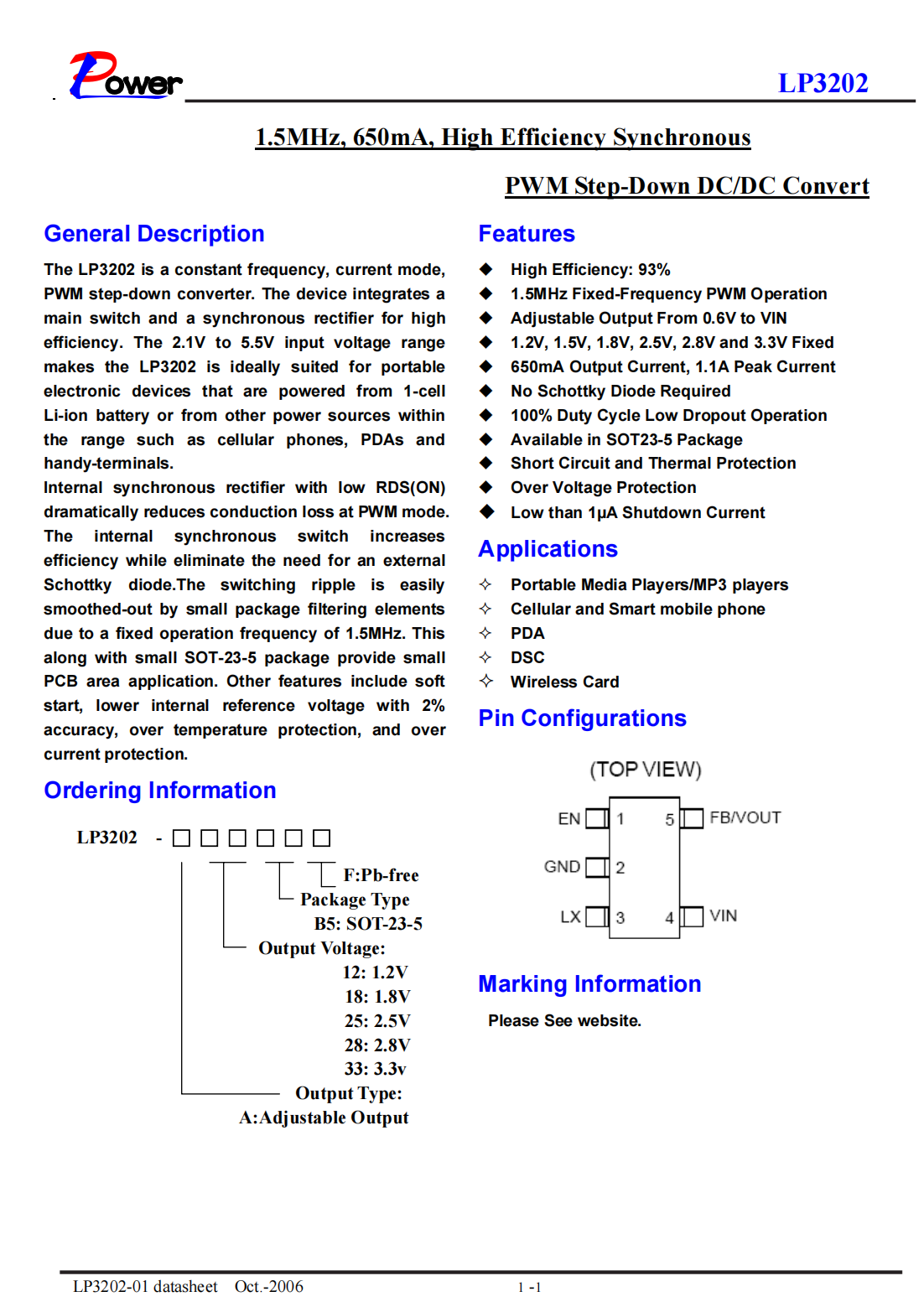

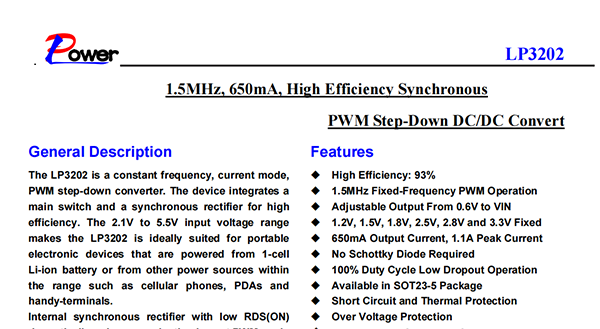

General Description

The LP3202 is a constant frequency,current mode,PWM step-down converter.The device integrates a main switch and a synchronous rectifier for high efficiency.The 2.1V to 5.5V input voltage range makes the LP3202 is ideally suited for portable electronic devices that are powered from 1-cell Li-ion battery or from other power sources within the range such as cellular phones,PDAs and handy-terminals.Internal synchronous rectifier with low RDS(ON)dramatically reduces conduction loss at PWM mode.

The internal synchronous switch increases efficiency while eliminate the need for an external Schottky diode.The switching ripple is easily smoothed-out by small package filtering elements due to a fixed operation frequency of 1.5MHz.This along with small SOT-23-5 package provide small PCB area application.Other features include soft start,lower internal reference voltage with 2%accuracy,over temperature protection,and over current protection.
