LCMXO3L-2100E-5UWG49CTR_Lattice 授权代理商

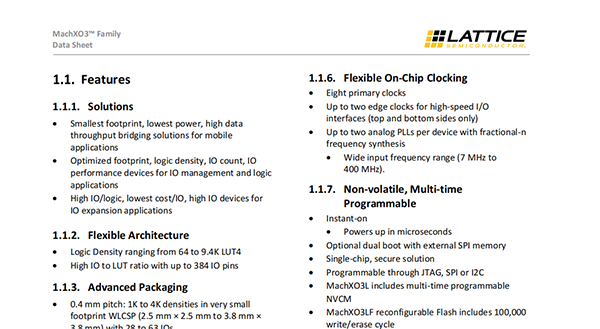

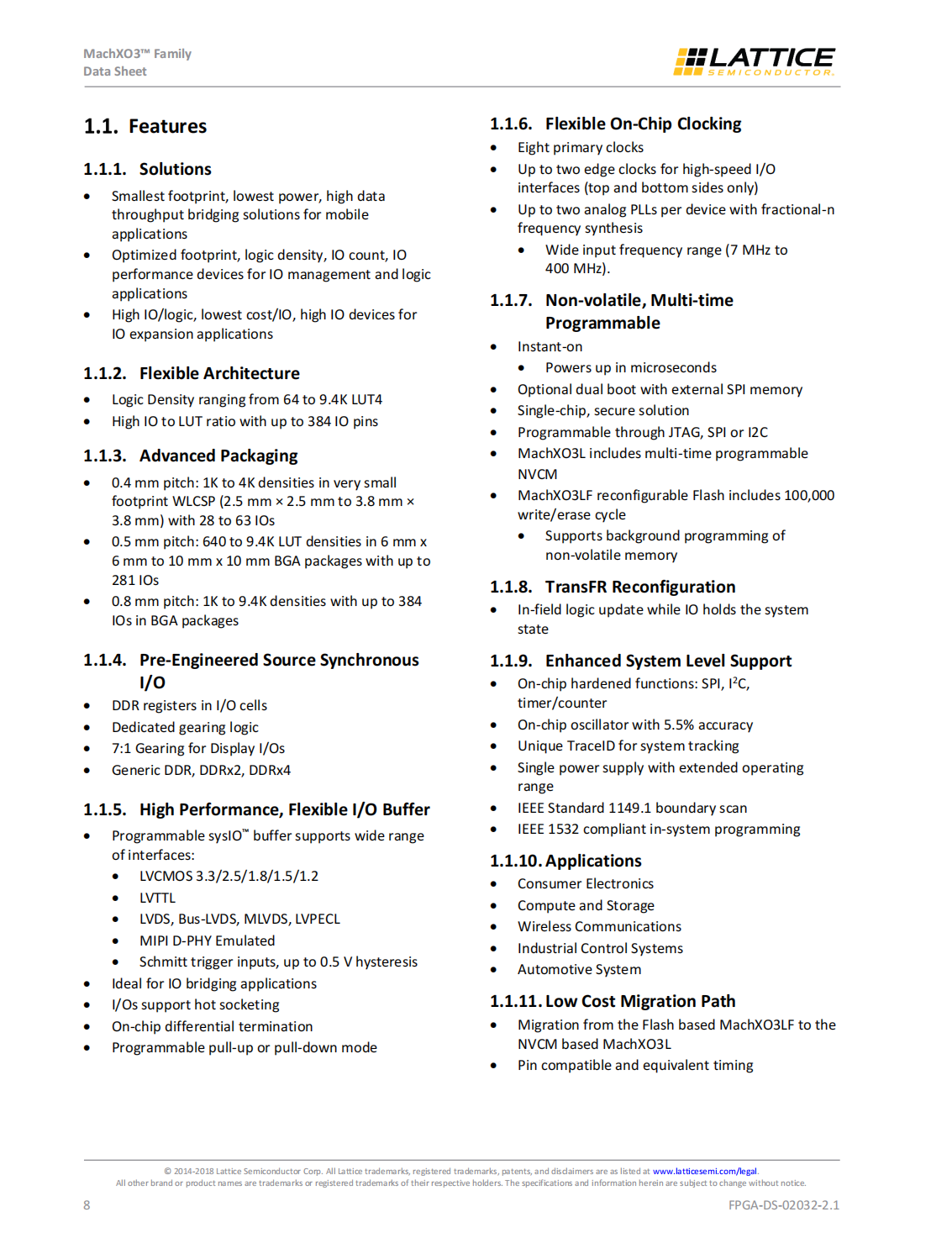

MachXO3™ device family is an Ultra-Low Density family that supports the most advanced programmable bridging and IO expansion
  • LVCMOS 3.3/2.5/1.8/1.5/1.2
  • LVDS, Bus-LVDS, MLVDS, LVPECL
  • MIPI D-PHY Emulated
  • Schmitt trigger inputs, up to 0.5 V hysteresis
详细内容


MachXO3™device family is an Ultra-Low Density family that supports the most advanced programmable bridging and IO expansion.It has the breakthrough IO density and the lowest cost per IO.The device IO features have the integrated support for latest industry standard IO.

The MachXO3L/LF family of low power,instant-on,non-volatile PLDs has five devices with densities ranging from 640 to 9400 Look-Up Tables(LUTs).In addition to LUT-based,low-cost programmable logic these devices feature Embedded Block RAM(EBR),Distributed RAM,Phase Locked Loops(PLLs),pre-engineered source synchronous I/O support,advanced configuration support including dual-boot capability and hardened versions of commonly used functions such as SPI controller,I2C controller and timer/counter.MachXO3LF devices also support User Flash Memory(UFM).These features allow these devices to be used in low cost,high volume consumer and system applications.
