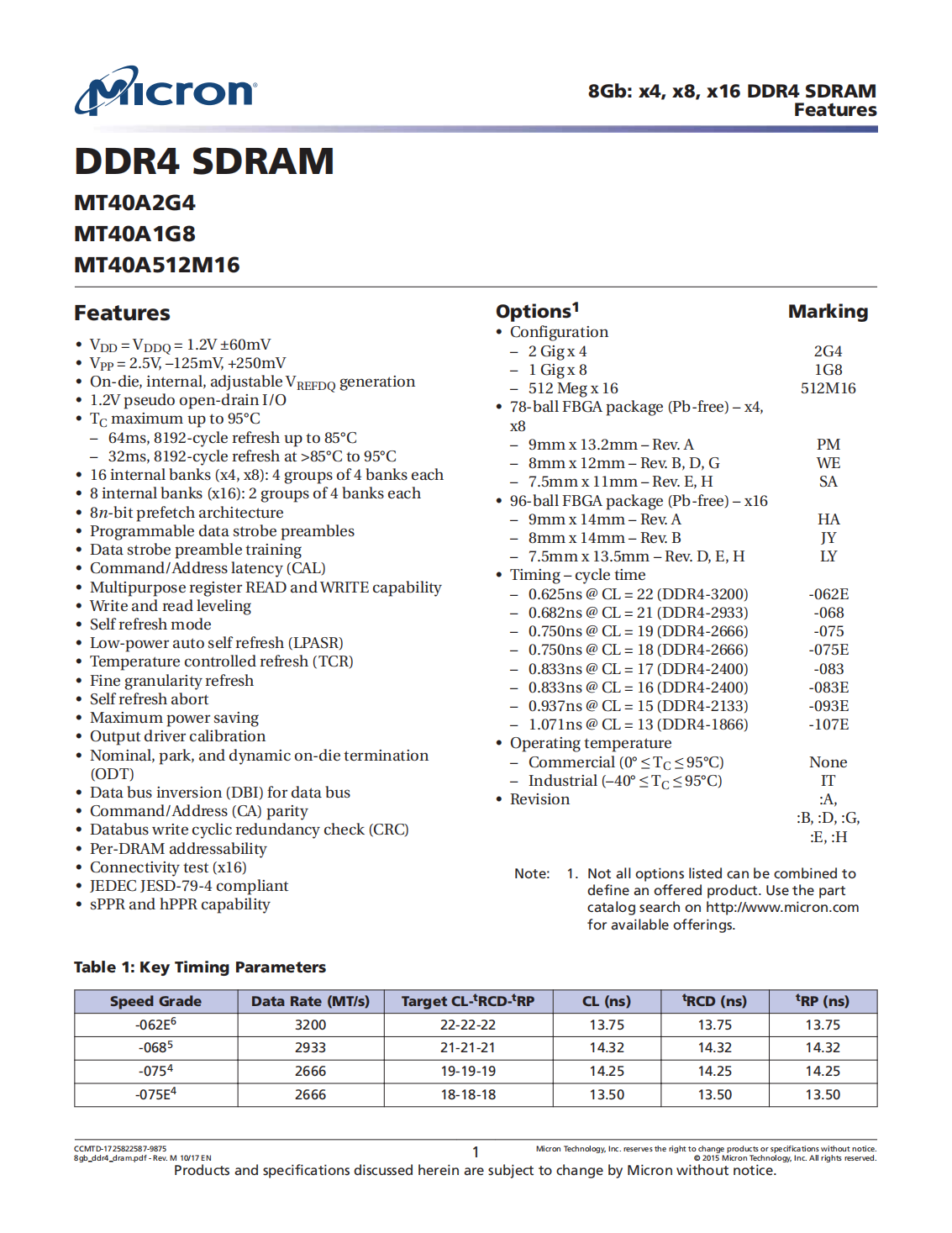

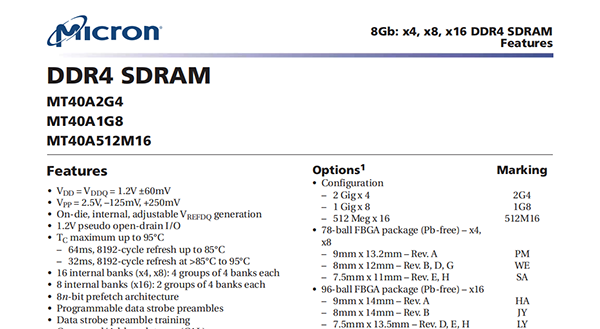

Features

•VDD=VDDQ=1.2V±60mV

•VPP=2.5V,–125mV,+250mV

•On-die,internal,adjustable VREFDQ generation

•1.2V pseudo open-drain I/O

•TC maximum up to 95°C

–64ms,8192-cycle refresh up to 85°C

–32ms,8192-cycle refresh at>85°C to 95°C

•16 internal banks(x4,x8):4 groups of 4 banks each

•8 internal banks(x16):2 groups of 4 banks each

•8n-bit prefetch architecture

•Programmable data strobe preambles

•Data strobe preamble training

•Command/Address latency(CAL)

•Multipurpose register READ and WRITE capability

•Write and read leveling

•Self refresh mode

•Low-power auto self refresh(LPASR)

•Temperature controlled refresh(TCR)

•Fine granularity refresh

•Self refresh abort

•Maximum power saving

•Output driver calibration

•Nominal,park,and dynamic on-die termination(ODT)

•Data bus inversion(DBI)for data bus

•Command/Address(CA)parity

•Databus write cyclic redundancy check(CRC)

•Per-DRAM addressability

•Connectivity test(x16)

•JEDEC JESD-79-4 compliant

•sPPR and hPPR capability
