M25P80-VMW6TG_8Mb, 3V Serial NOR Flash
The M25P80 is an 8Mb (1Mb x 8) serial Flash memory device with advanced write protection mechanisms accessed by a high speed SPI-compatible bus
  • SPI bus-compatible serial interface
  • 8Mb Flash memory
  • 75 MHz clock frequency (maximum)
  • 2.7V to 3.6V single supply voltage
详细内容

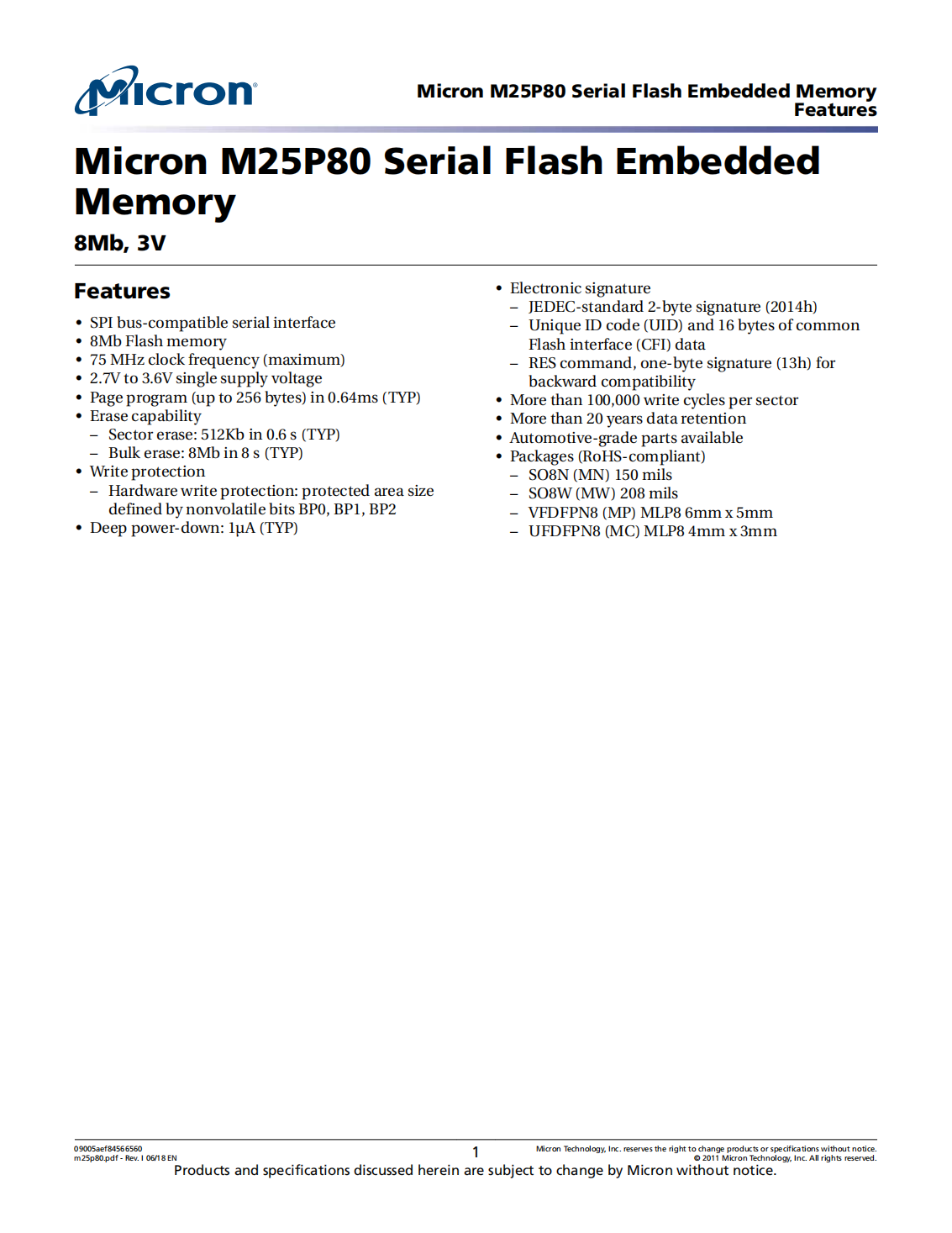

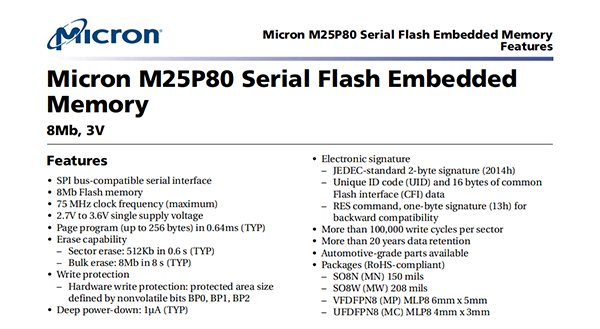

Features

•SPI bus-compatible serial interface

•8Mb Flash memory

•75 MHz clock frequency(maximum)

•2.7V to 3.6V single supply voltage

•Page program(up to 256 bytes)in 0.64ms(TYP)

•Erase capability

–Sector erase:512Kb in 0.6 s(TYP)

–Bulk erase:8Mb in 8 s(TYP)

•Write protection

–Hardware write protection:protected area size defined by nonvolatile bits BP0,BP1,BP2

•Deep power-down:1µA(TYP)

•Electronic signature

–JEDEC-standard 2-byte signature(2014h)

–Unique ID code(UID)and 16 bytes of common

Flash interface(CFI)data

–RES command,one-byte signature(13h)for backward compatibility

•More than 100,000 write cycles per sector

•More than 20 years data retention

•Automotive-grade parts available

•Packages(RoHS-compliant)

–SO8N(MN)150 mils

–SO8W(MW)208 mils

–VFDFPN8(MP)MLP8 6mm x 5mm

–UFDFPN8(MC)MLP8 4mm x 3mm
