The BL24C08F provides 8192 bits of serial electrically erasable and programmable read-only memory (EEPROM), organized as 1024 words of 8 bits each
  • 8K bits (1024 X 8) of EEPROM
  • Page size: 16 bytes
  • Endurance: 1 Million Write Cycles
  • 8-lead PDIP/SOP/TSSOP/ UDFN/SOT23-5 and TSOT23-5 packages
详细内容

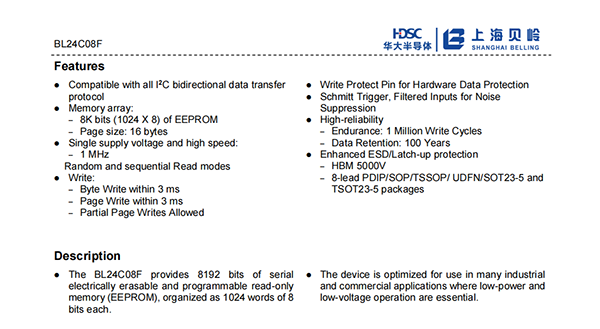

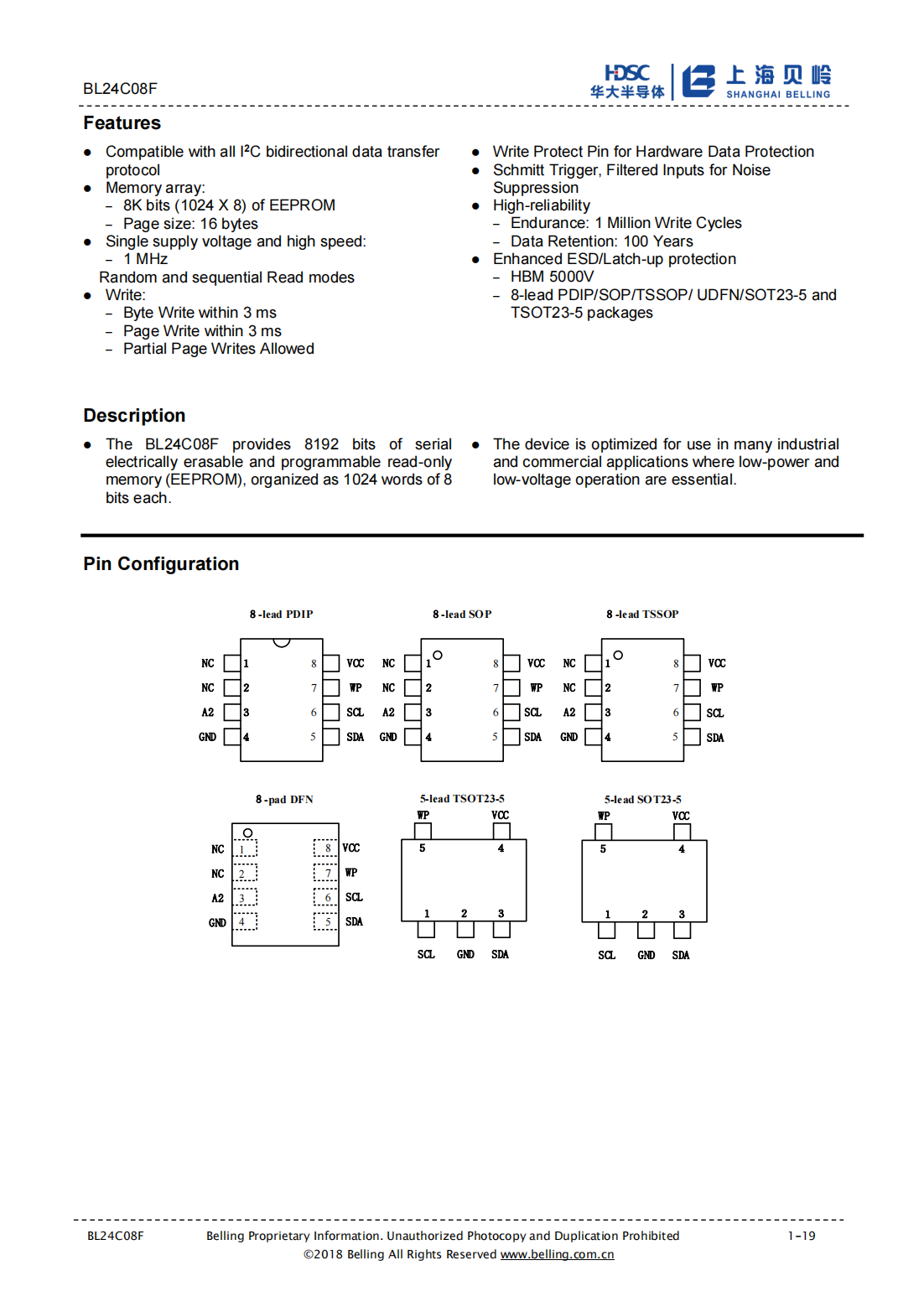

Features

⚫Compatible with all I2C bidirectional data transfer protocol

⚫Memory array:

–8K bits(1024 X 8)of EEPROM

–Page size:16 bytes

⚫Single supply voltage and high speed:

–1 MHz

Random and sequential Read modes

⚫Write:

–Byte Write within 3 ms

–Page Write within 3 ms

–Partial Page Writes Allowed

⚫Write Protect Pin for Hardware Data Protection

⚫Schmitt Trigger,Filtered Inputs for Noise Suppression

⚫High-reliability

–Endurance:1 Million Write Cycles

–Data Retention:100 Years

⚫Enhanced ESD/Latch-up protection

–HBM 5000V

–8-lead PDIP/SOP/TSSOP/UDFN/SOT23-5 and TSOT23-5 packages

Description

⚫The BL24C08F provides 8192 bits of serial electrically erasable and programmable read-only memory(EEPROM),organized as 1024 words of 8 bits each.

⚫The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential.
