M0706_8.5V 6A开关频率1.4MHz降压芯片
The M0706 is a 6A step-down switching mode Power SoC (System on Chip) with integrated power MosFETs
  • 输⼊电压范围:3V~8.5V
  • 可调输出电压范围:0.6V~5.5V
  • 轻载强制连续模式实现低纹波
  • 开关频率1.4MHz
详细内容

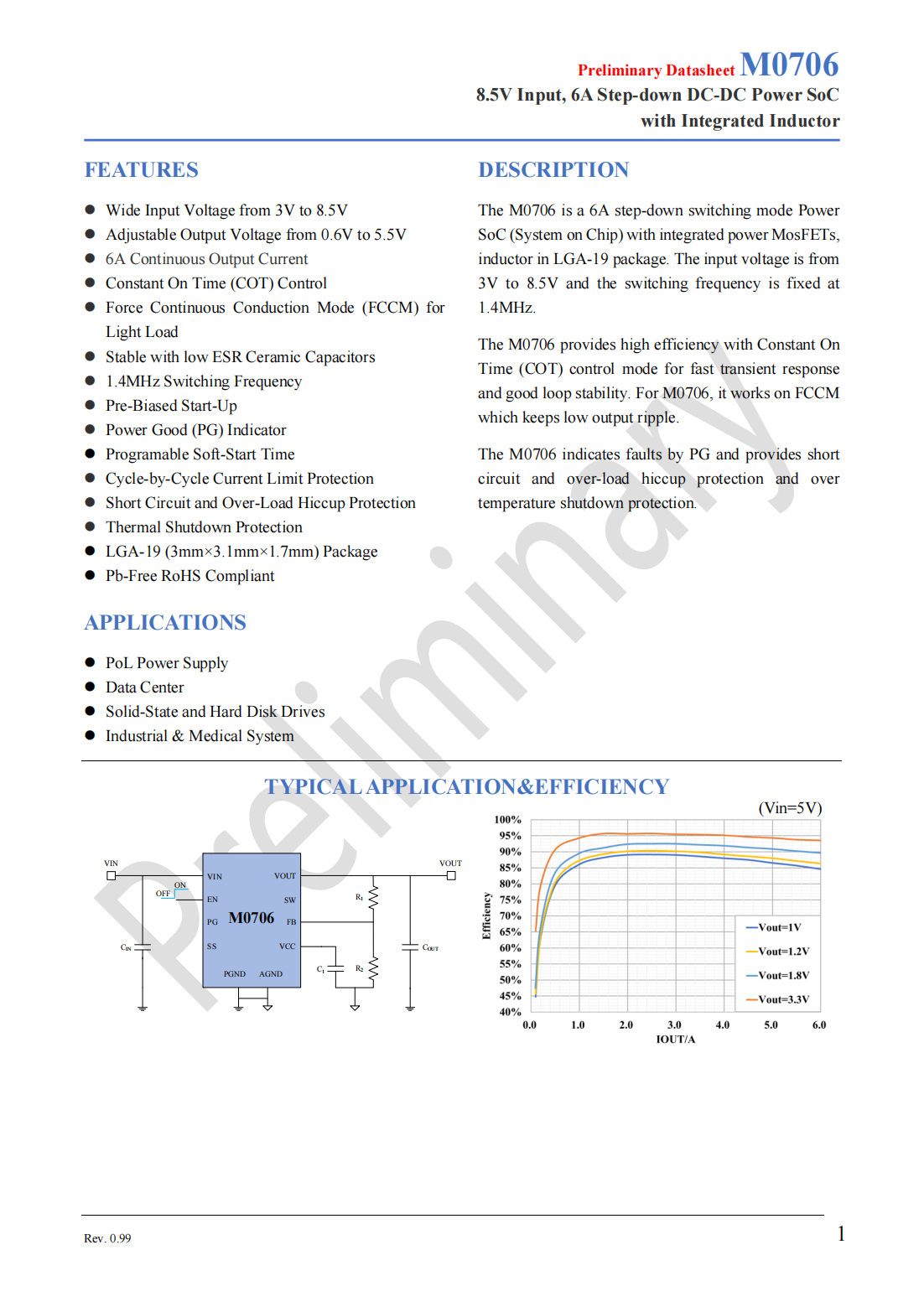

FEATURES

⚫Wide Input Voltage from 3V to 8.5V

⚫Adjustable Output Voltage from 0.6V to 5.5V

⚫6A Continuous Output Current

⚫Constant On Time(COT)Control

⚫Force Continuous Conduction Mode(FCCM)for Light Load

⚫Stable with low ESR Ceramic Capacitors

⚫1.4MHz Switching Frequency

⚫Pre-Biased Start-Up

⚫Power Good(PG)Indicator

⚫Programable Soft-Start Time

⚫Cycle-by-Cycle Current Limit Protection

⚫Short Circuit and Over-Load Hiccup Protection

⚫Thermal Shutdown Protection

⚫LGA-19(3mm×3.1mm×1.7mm)Package

⚫Pb-Free RoHS Compliant

APPLICATIONS

⚫PoL Power Supply

⚫Data Center

⚫Solid-State and Hard Disk Drives

⚫Industrial&Medical System

DESCRIPTION

The M0706 is a 6A step-down switching mode Power SoC(System on Chip)with integrated power MosFETs,inductor in LGA-19 package.The input voltage is from 3V to 8.5V and the switching frequency is fixed at 1.4MHz.

The M0706 provides high efficiency with Constant On Time(COT)control mode for fast transient response and good loop stability.For M0706,it works on FCCM which keeps low output ripple.

The M0706 indicates faults by PG and provides short circuit and over-load hiccup protection and over temperature shutdown protection.
