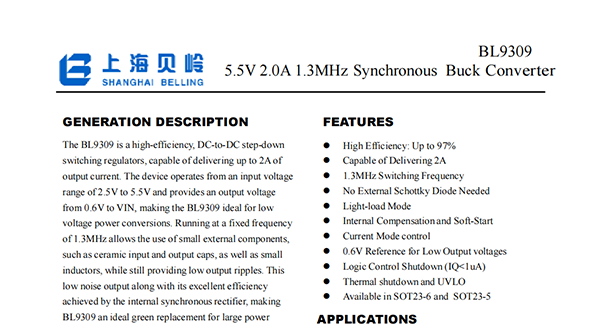

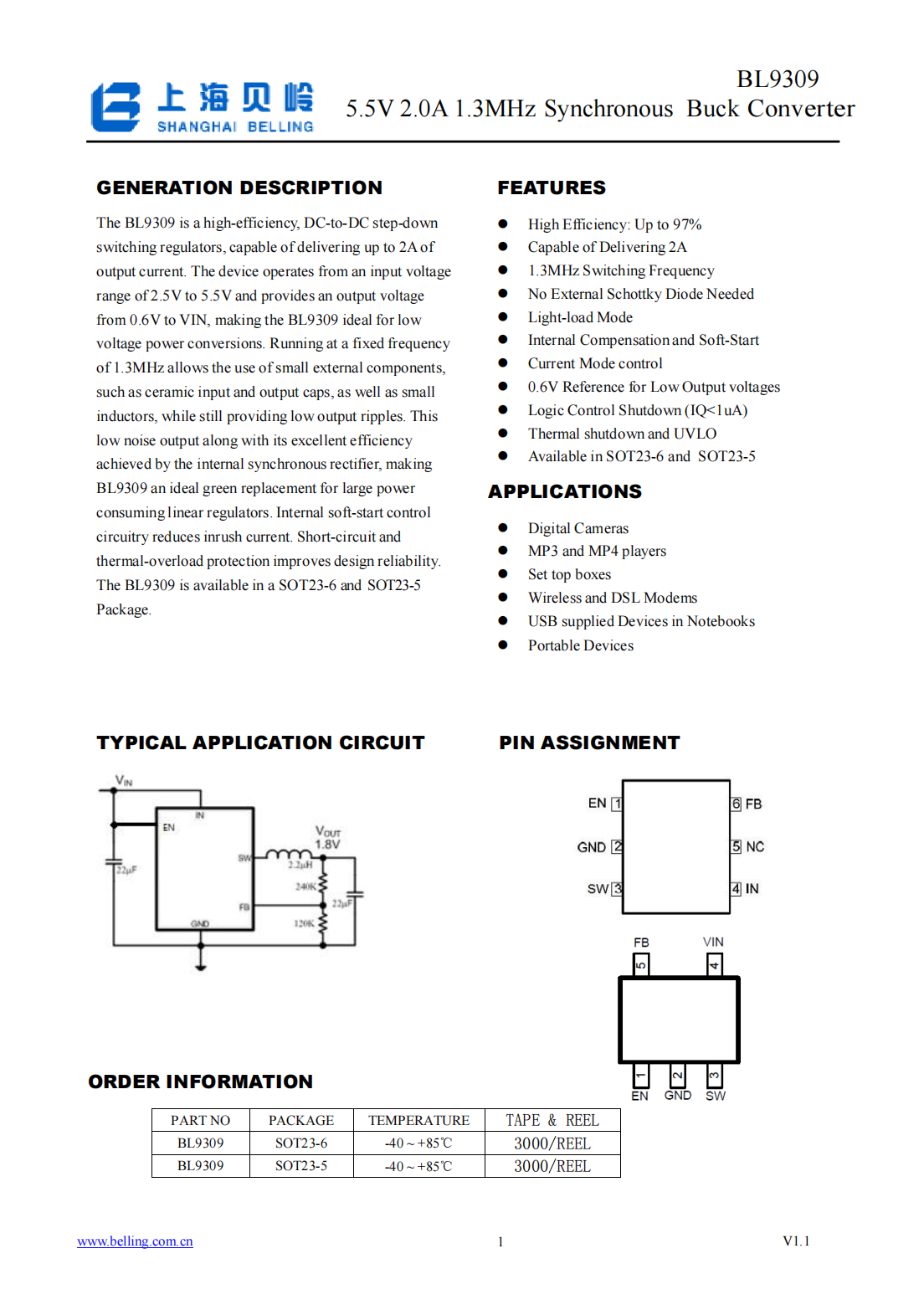

The BL9309 is a high-efficiency,DC-to-DC step-down switching regulators,capable of delivering up to 2A of output current.The device operates from an input voltage range of 2.5V to 5.5V and provides an output voltage from 0.6V to VIN,making the BL9309 ideal for low voltage power conversions.Running at a fixed frequency of 1.3MHz allows the use of small external components,such as ceramic input and output caps,as well as small inductors,while still providing low output ripples.This low noise output along with its excellent efficiency achieved by the internal synchronousrectifier,making BL9309 an ideal green replacement for large power consuming linear regulators.Internal soft-start control circuitry reduces inrush current.Short-circuit and thermal-overload protection improves design reliability.The BL9309 is available in a SOT23-6 and SOT23-5 Package.

FEATURES

High Efficiency:Up to 97%

Capable of Delivering 2A

1.3MHz Switching Frequency

No External Schottky Diode Needed

Light-load Mode

Internal Compensation and Soft-Start

Current Mode control

0.6V Reference for Low Output voltages

Logic Control Shutdown(IQ<1uA)

Thermal shutdown and UVLO

Available in SOT23-6 and SOT23-5

APPLICATIONS

Digital Cameras

MP3 and MP4 players

Set top boxes

Wireless and DSL Modems

USB supplied Devices in Notebooks

Portable Devices
