CS5269_Type-C to HDMI2.0b 4k@60Hz
USB Type-C to HDMI2.0b 4k@60Hz and VGA Converter with PD3.0 Support
  • USB Type-C Specification 1.2
  • USB Type-C Specification 1.2
  • USB Power Delivery(PD) v 3.0 compliant
  • HDMI specification v2.0b compliant transmitter, data rate up to 6-Gbps per channel.
详细内容


General

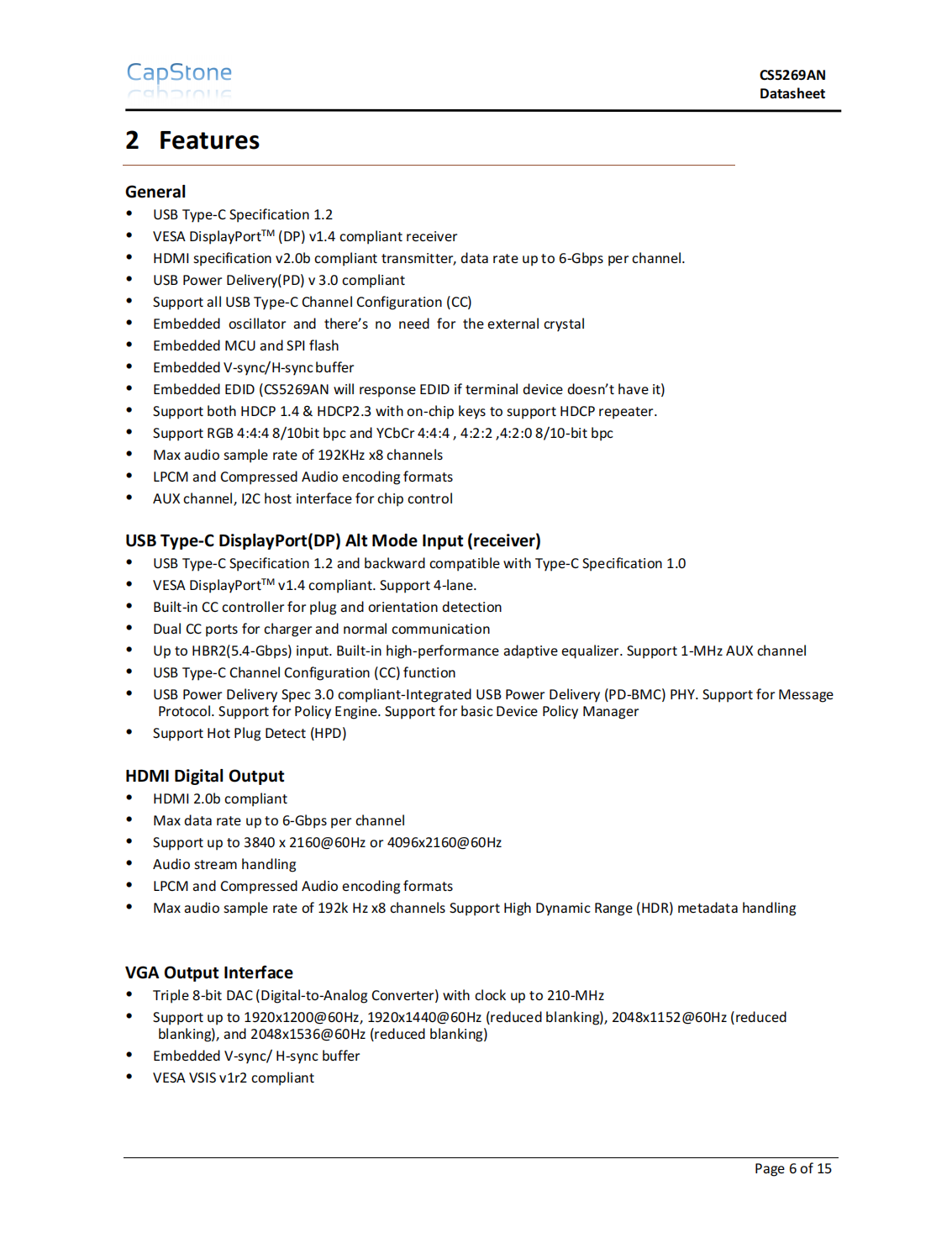

USB Type-C Specification 1.2

VESA DisplayPortTM(DP)v1.4 compliant receiver

HDMI specification v2.0b compliant transmitter,data rate up to 6-Gbps per channel.

USB Power Delivery(PD)v 3.0 compliant

Support all USB Type-C Channel Configuration(CC)

Embedded oscillator and there’s no need for the external crystal

Embedded MCU and SPI flash

Embedded V-sync/H-sync buffer

Embedded EDID(CS5269AN will response EDID if terminal device doesn’t have it)

Support both HDCP 1.4&HDCP2.3 with on-chip keys to support HDCP repeater.

Support RGB 4:4:4 8/10bit bpc and YCbCr 4:4:4,4:2:2,4:2:0 8/10-bit bpc

Max audio sample rate of 192KHz x8 channels

LPCM and Compressed Audio encoding formats

AUX channel,I2C host interface for chip control

USB Type-C DisplayPort(DP)Alt Mode Input(receiver)

USB Type-C Specification 1.2 and backward compatible with Type-C Specification 1.0

VESA DisplayPortTM v1.4 compliant.Support 4-lane.

Built-in CC controller for plug and orientation detection

Dual CC ports for charger and normal communication

Up to HBR2(5.4-Gbps)input.Built-in high-performance adaptive equalizer.Support 1-MHz AUX channel

USB Type-C Channel Configuration(CC)function

USB Power Delivery Spec 3.0 compliant-Integrated USB Power Delivery(PD-BMC)PHY.Support for Message Protocol.Support for Policy Engine.Support for basic Device Policy Manager

Support Hot Plug Detect(HPD)

HDMI Digital Output

HDMI 2.0b compliant

Max data rate up to 6-Gbps per channel

Support up to 3840 x 2160 60Hz or 4096x2160 60Hz

Audio stream handling

LPCM and Compressed Audio encoding formats

Max audio sample rate of 192k Hz x8 channels Support High Dynamic Range(HDR)metadata handling

VGA Output Interface

Triple 8-bit DAC(Digital-to-Analog Converter)with clock up to 210-MHz

Support up to 1920x1200 60Hz,1920x1440 60Hz(reduced blanking),2048x1152 60Hz(reduced blanking),and 2048x1536 60Hz(reduced blanking)

Embedded V-sync/H-sync buffer

VESA VSIS v1r2 compliant
