MC3635_3-Axis Accelerometer
The MC3635 is an ultra-low power, lownoise, integrated digital output 3-axis accelerometer with a feature set optimized for wearables and consumer product motion sensing
  • ±2, 4, 8, 12 or 16g ranges
  • 8, 10 or 12-bit resolution with FIFO o 14-bit single samples
  • I2C interface, up to 1 MHz
  • 1.6 × 1.6 × 0.94 mm 10-pin package
详细内容

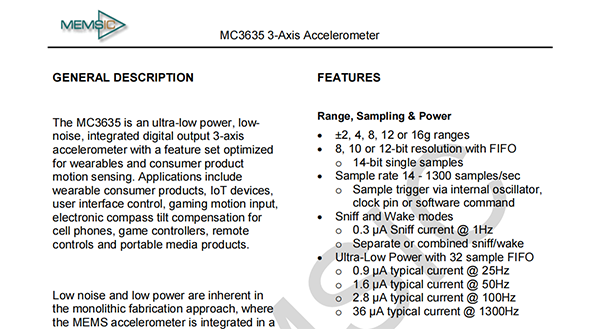

GENERAL DESCRIPTION

The MC3635 is an ultra-low power,lownoise,integrated digital output 3-axis accelerometer with a feature set optimized for wearables and consumer product motion sensing.Applications include wearable consumer products,IoT devices,user interface control,gaming motion input,electronic compass tilt compensation for cell phones,game controllers,remote controls and portable media products.

Low noise and low power are inherent in the monolithic fabrication approach,where the MEMS accelerometer is integrated in a single-chip with the electronics integrated circuit.

In the MC3635 the internal sample rate can be set from 14 to 1300 samples/second.Specific tap or sample acquisitionconditions can trigger an interrupt to a remote MCU.Alternatively,the device supports the reading of sample and event status via polling.

Information furnished by MEMSIC is believed to be accurate and reliable.However,no responsibility is assumed by MEMSIC for its use,or for any infringements of patents or other rights of third parties which may result from its use.No license is granted by implication or otherwise under any patent or patent rights of MEMSIC.

FEATURES

Range,Sampling&Power

±2,4,8,12 or 16g ranges

8,10 or 12-bit resolution with FIFO

o 14-bit single samples

Sample rate 14-1300 samples/sec

o Sample trigger via internal oscillator,

clock pin or software command

Sniff and Wake modes

o 0.3μA Sniff current 1Hz

o Separate or combined sniff/wake

Ultra-Low Power with 32 sample FIFO

o 0.9μA typical current 25Hz

o 1.6μA typical current 50Hz

o 2.8μA typical current 100Hz

o 36μA typical current 1300Hz

Simple System Integration

I2C interface,up to 1 MHz

SPI Interface,up to 8 MHz

1.6×1.6×0.94 mm 10-pin package

Single-chip 3D silicon MEMS

Low noise to 2.3mgRMS

ROHS Compliant
