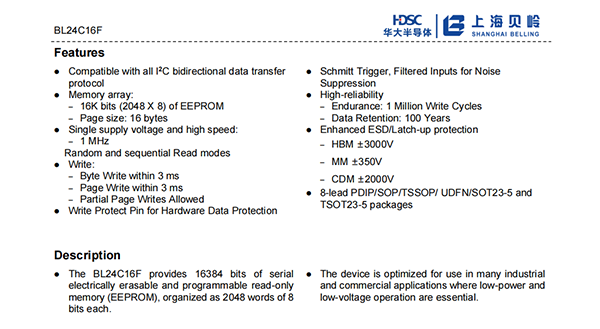

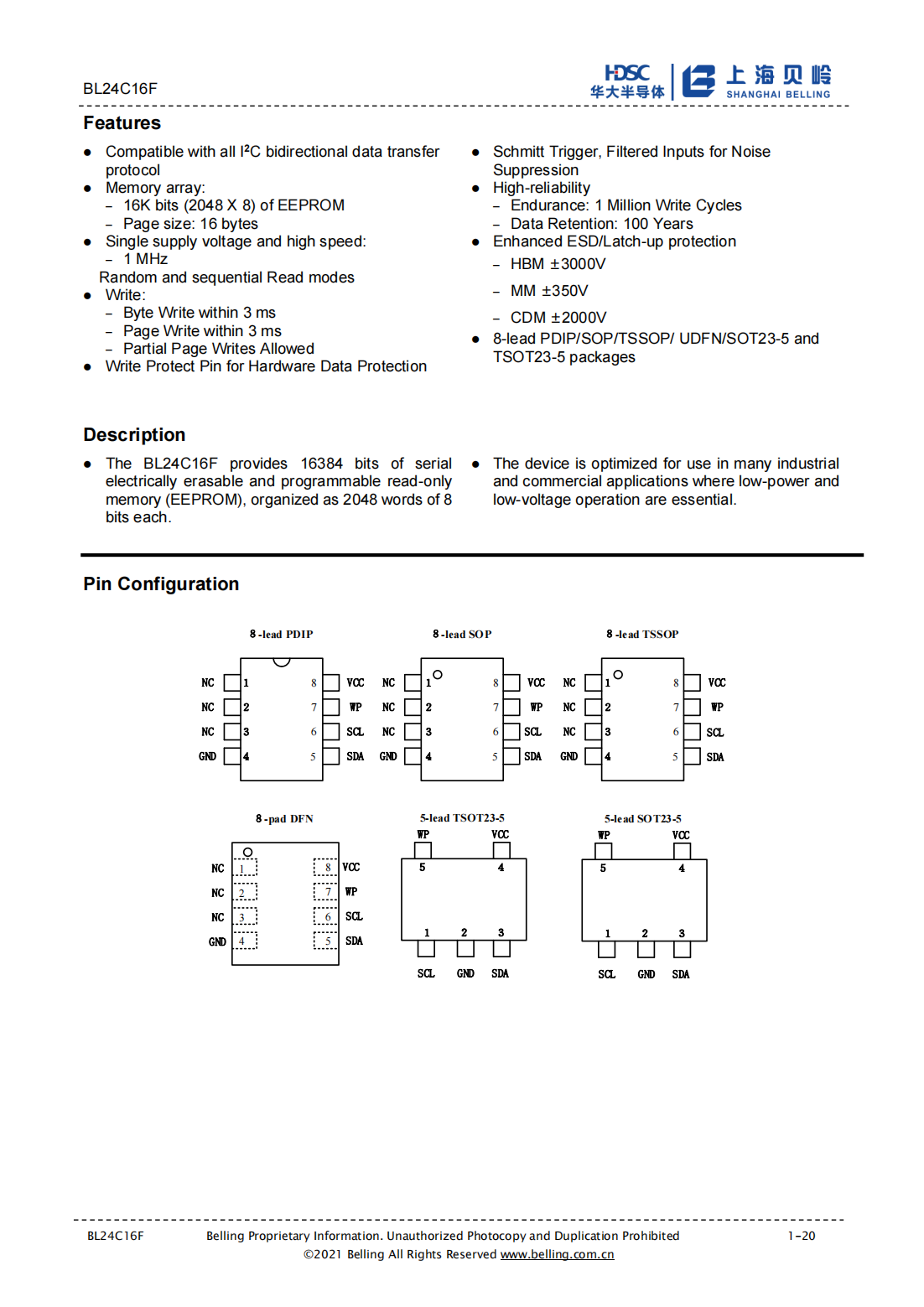

Features

⚫Compatible with all I2C bidirectional data transfer protocol

⚫Memory array:

–16K bits(2048 X 8)of EEPROM

–Page size:16 bytes

⚫Single supply voltage and high speed:

–1 MHz

Random and sequential Read modes

⚫Write:

–Byte Write within 3 ms

–Page Write within 3 ms

–Partial Page Writes Allowed

⚫Write Protect Pin for Hardware Data Protection

⚫Schmitt Trigger,Filtered Inputs for Noise Suppression

⚫High-reliability

–Endurance:1 Million Write Cycles

–Data Retention:100 Years

⚫Enhanced ESD/Latch-up protection

–HBM±3000V

–MM±350V

–CDM±2000V

⚫8-lead PDIP/SOP/TSSOP/UDFN/SOT23-5 and TSOT23-5 packages

Description

⚫The BL24C16F provides 16384 bits of serial electrically erasable and programmable read-only memory(EEPROM),organized as 2048 words of 8 bits each.

⚫The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential.
