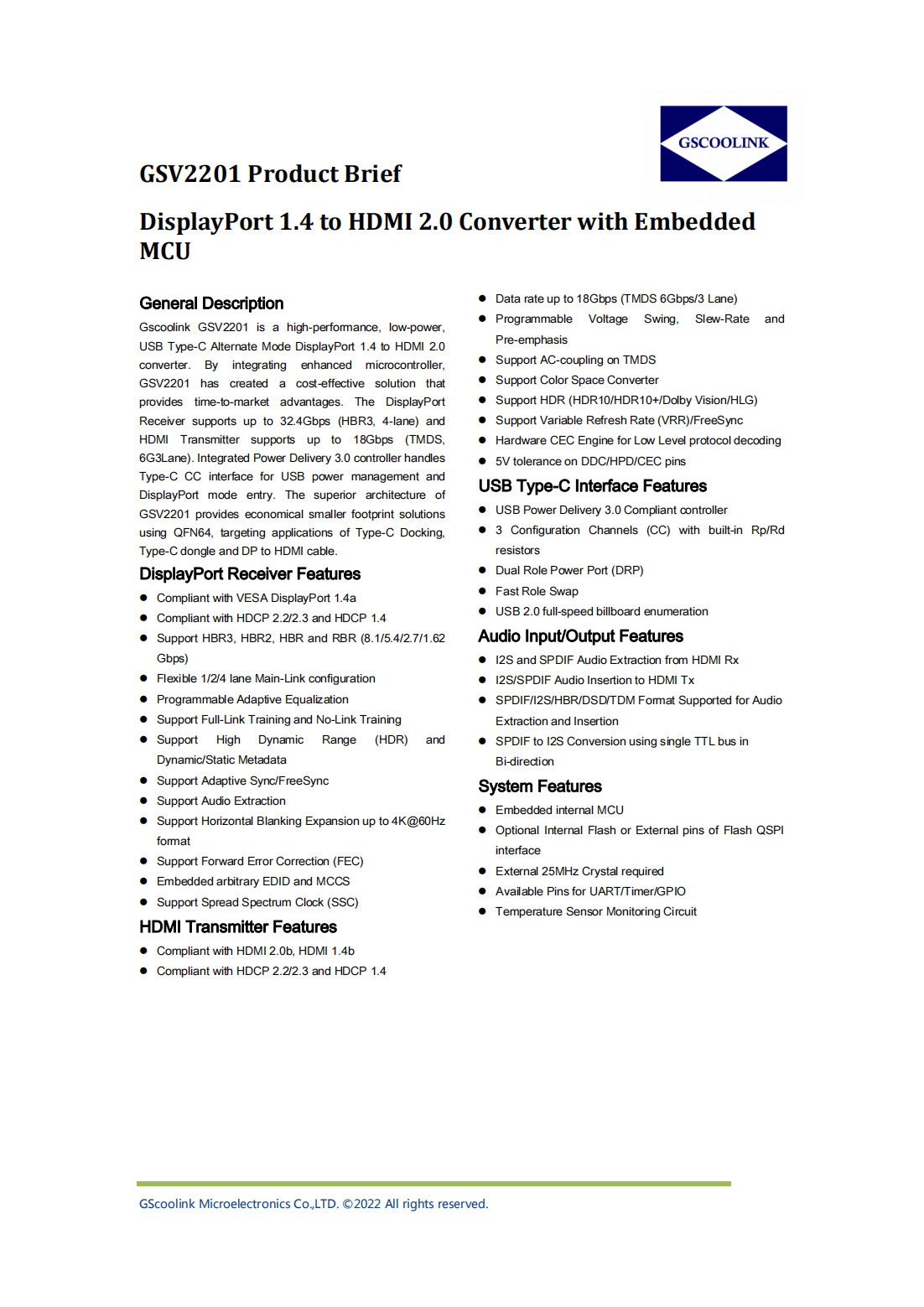

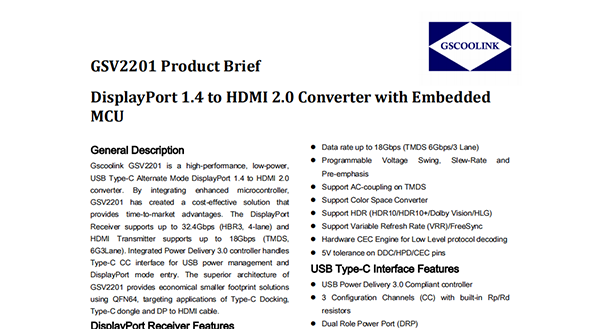

General Description

Gscoolink GSV2201 is a high-performance,low-power,USB Type-C Alternate Mode DisplayPort 1.4 to HDMI 2.0 converter.By integrating enhanced microcontroller,GSV2201 has created a cost-effective solution that provides time-to-market advantages.The DisplayPort Receiver supports up to 32.4Gbps(HBR3,4-lane)and HDMI Transmitter supports up to 18Gbps(TMDS,6G3Lane).Integrated Power Delivery 3.0 controller handles Type-C CC interface for USB power management and DisplayPort mode entry.The superior architecture of GSV2201 provides economical smaller footprint solutions using QFN64,targeting applications of Type-C Docking,Type-C dongle and DP to HDMI cable.

DisplayPort Receiver Features

Compliant with VESA DisplayPort 1.4a

Compliant with HDCP 2.2/2.3 and HDCP 1.4

Support HBR3,HBR2,HBR and RBR(8.1/5.4/2.7/1.62 Gbps)

Flexible 1/2/4 lane Main-Link configuration

Programmable Adaptive Equalization

Support Full-Link Training and No-Link Training

Support High Dynamic Range(HDR)and Dynamic/Static Metadata

Support Adaptive Sync/FreeSync

Support Audio Extraction

Support Horizontal Blanking Expansion up to 4K 60Hz format

Support Forward Error Correction(FEC)

Embedded arbitrary EDID and MCCS

Support Spread Spectrum Clock(SSC)

HDMI Transmitter Features

Compliant with HDMI 2.0b,HDMI 1.4b

Compliant with HDCP 2.2/2.3 and HDCP 1.4

Data rate up to 18Gbps(TMDS 6Gbps/3 Lane)

Programmable Voltage Swing,Slew-Rate and Pre-emphasis

Support AC-coupling on TMDS

Support Color Space Converter

Support HDR(HDR10/HDR10+/Dolby Vision/HLG)

Support Variable Refresh Rate(VRR)/FreeSync

Hardware CEC Engine for Low Level protocol decoding

5V tolerance on DDC/HPD/CEC pins

USB Type-C Interface Features

USB Power Delivery 3.0 Compliant controller

3 Configuration Channels(CC)with built-in Rp/Rd resistors

Dual Role Power Port(DRP)

Fast Role Swap

USB 2.0 full-speed billboard enumeration

Audio Input/Output Features

I2S and SPDIF Audio Extraction from HDMI Rx

I2S/SPDIF Audio Insertion to HDMI Tx

SPDIF/I2S/HBR/DSD/TDM Format Supported for Audio

Extraction and Insertion

SPDIF to I2S Conversion using single TTL bus in Bi-direction

System Features

Embedded internal MCU

Optional Internal Flash or External pins of Flash QSPI interface

External 25MHz Crystal required

Available Pins for UART/Timer/GPIO

Temperature Sensor Monitoring Circuit
