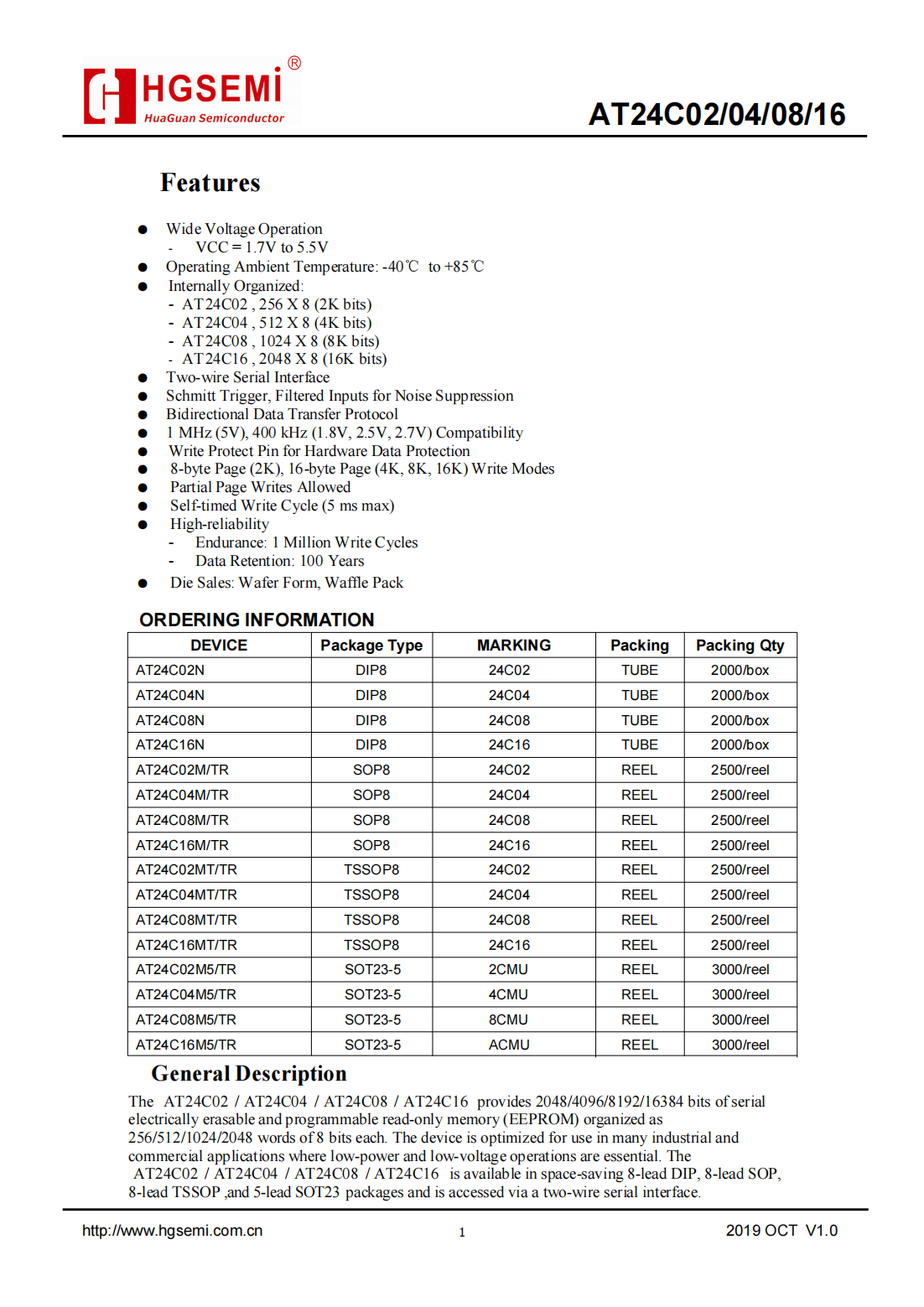

Features

●Wide Voltage Operation

-VCC=1.7V to 5.5V

●Operating Ambient Temperature:-40℃to+85℃

●Internally Organized:

-AT24C02,256 X 8(2K bits)

-AT24C04,512 X 8(4K bits)

-AT24C08,1024 X 8(8K bits)

-AT24C16,2048 X 8(16K bits)

●Two-wire Serial Interface

●Schmitt Trigger,Filtered Inputs for Noise Suppression

●Bidirectional Data Transfer Protocol

●1 MHz(5V),400 kHz(1.8V,2.5V,2.7V)Compatibility

●Write Protect Pin for Hardware Data Protection

●8-byte Page(2K),16-byte Page(4K,8K,16K)Write Modes

●Partial Page Writes Allowed

●Self-timed Write Cycle(5 ms max)

●High-reliability

-Endurance:1 Million Write Cycles

-Data Retention:100 Years

●Die Sales:Wafer Form,Waffle Pack
