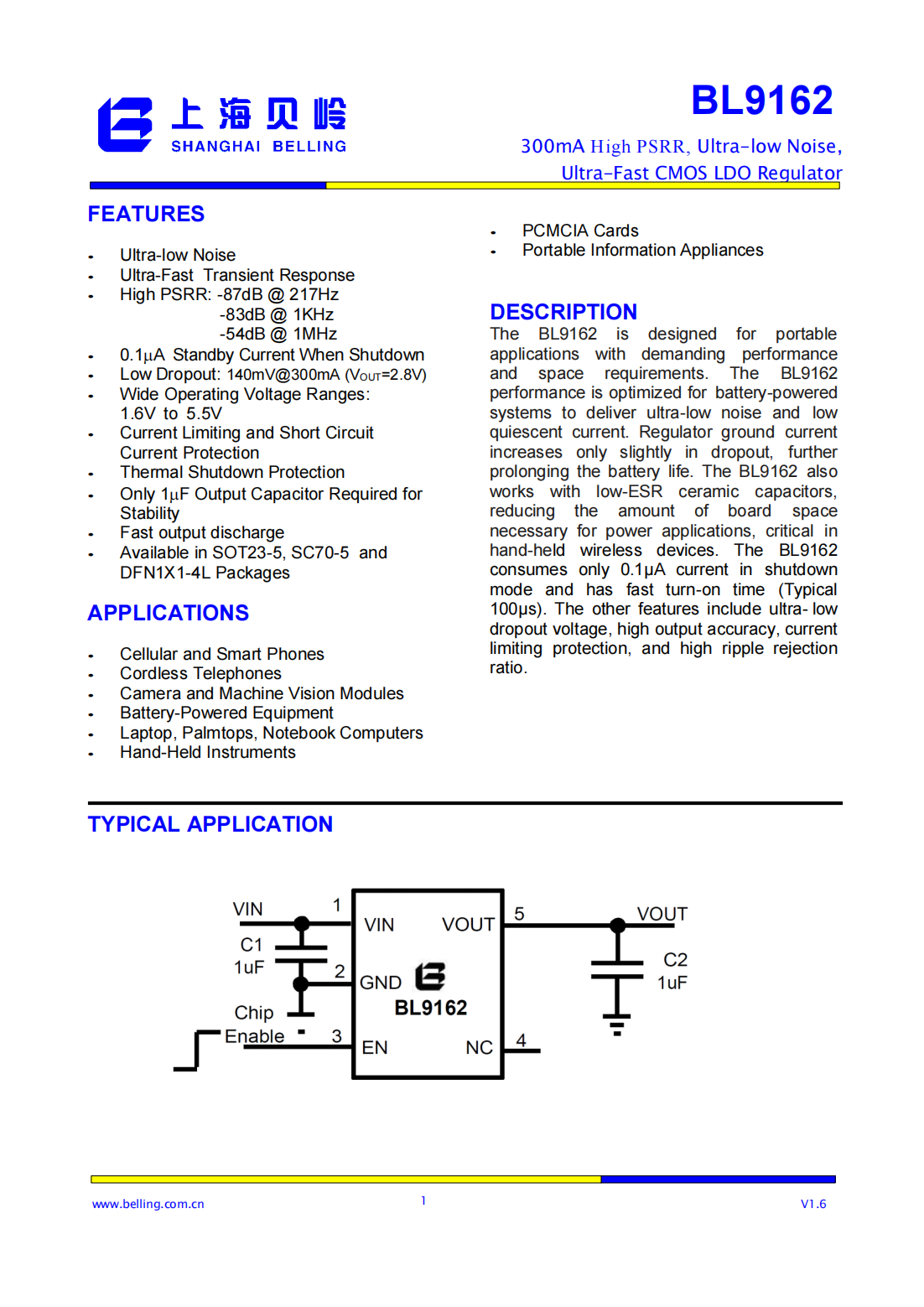

FEATURES

Ultra-low Noise

Ultra-Fast Transient Response

High PSRR:-87dB 217Hz

-83dB 1KHz

-54dB 1MHz

0.1A Standby Current When Shutdown

Low Dropout:140mV 300mA(VOUT=2.8V)

Wide Operating Voltage Ranges:1.6V to 5.5V

Current Limiting and Short Circuit Current Protection

Thermal Shutdown Protection

Only 1F Output Capacitor Required for Stability

Fast output discharge

Available in SOT23-5,SC70-5 and DFN1X1-4L Packages

APPLICATIONS

Cellular and Smart Phones

Cordless Telephones

Camera and Machine Vision Modules

Battery-Powered Equipment

Laptop,Palmtops,Notebook Computers

Hand-Held Instruments

PCMCIA Cards

Portable Information Appliances

DESCRIPTION

The BL9162 is designed for portable applications with demanding performance and space requirements.The BL9162 performance is optimized for battery-powered systems to deliver ultra-low noise and low quiescent current.Regulator ground current increases only slightly in dropout,further prolonging the battery life.The BL9162 also works with low-ESR ceramic capacitors,reducing the amount of board space necessary for power applications,critical in hand-held wireless devices.

The BL9162 consumes only 0.1µA current in shutdown mode and has fast turn-on time(Typical 100µs).The other features include ultra-low dropout voltage,high output accuracy,current limiting protection,and high ripple rejection ratio.
