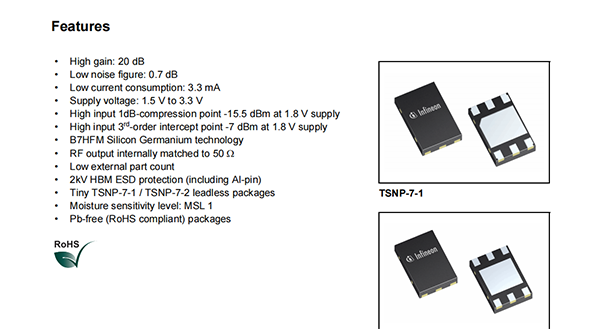

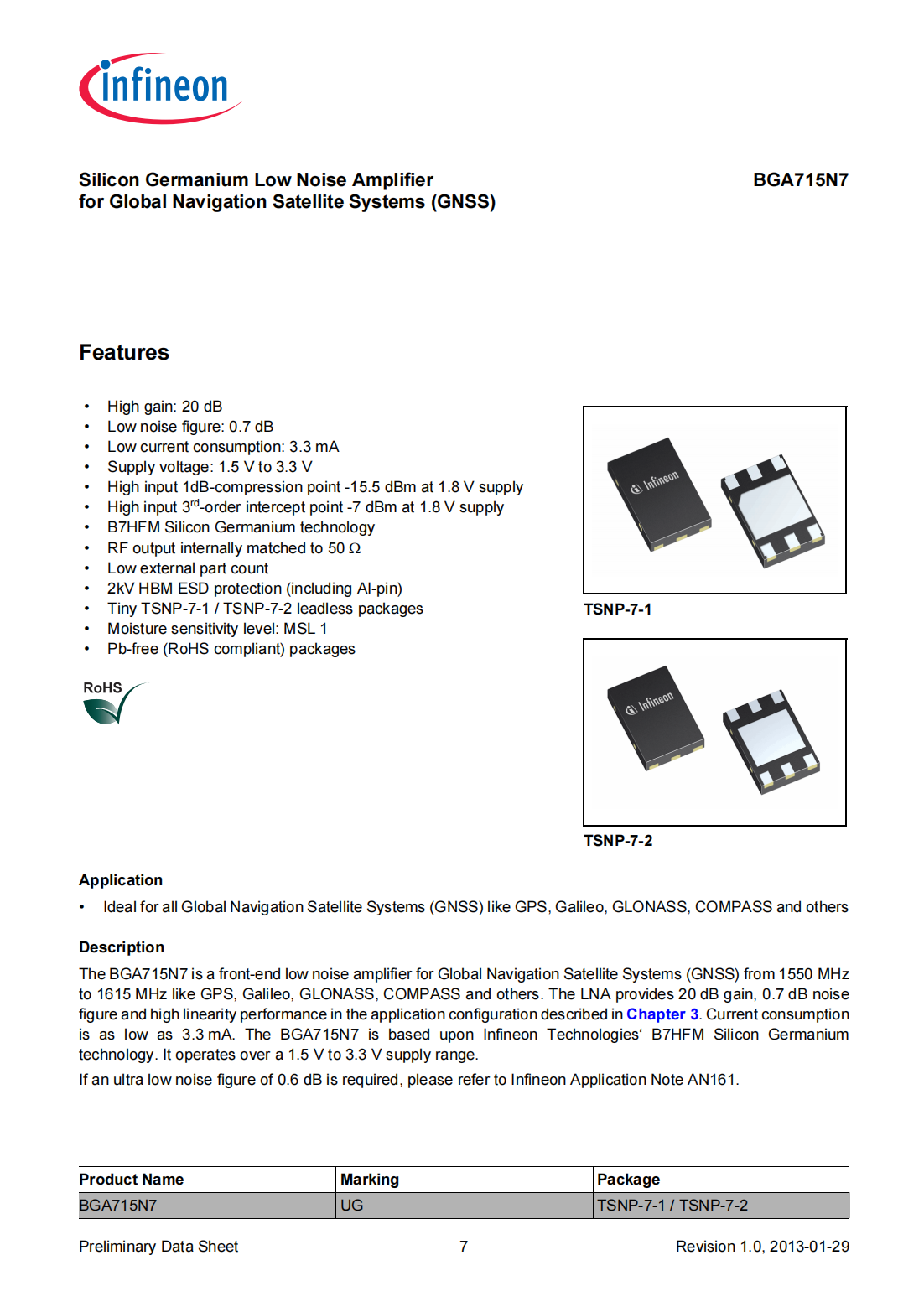

Features

•High gain:20 dB

•Low noise figure:0.7 dB

•Low current consumption:3.3 mA

•Supply voltage:1.5 V to 3.3 V

•High input 1dB-compression point-15.5 dBm at 1.8 V supply

•High input 3rd-order intercept point-7 dBm at 1.8 V supply

•B7HFM Silicon Germanium technology

•RF output internally matched to 50Ω

•Low external part count

•2kV HBM ESD protection(including AI-pin)

•Tiny TSNP-7-1/TSNP-7-2 leadless packages

•Moisture sensitivity level:MSL 1

•Pb-free(RoHS compliant)packages

Application

•Ideal for all Global Navigation Satellite Systems(GNSS)like GPS,Galileo,GLONASS,COMPASS and others

Description

The BGA715N7 is a front-end low noise amplifier for Global Navigation Satellite Systems(GNSS)from 1550 MHz to 1615 MHz like GPS,Galileo,GLONASS,COMPASS and others.The LNA provides 20 dB gain,0.7 dB noise figure and high linearity performance in the application configuration described in Chapter 3.Current consumption is as low as 3.3 mA.The BGA715N7 is based upon Infineon Technologies‘B7HFM Silicon Germanium technology.It operates over a 1.5 V to 3.3 V supply range.If an ultra low noise figure of 0.6 dB is required,please refer to Infineon Application Note AN161.
