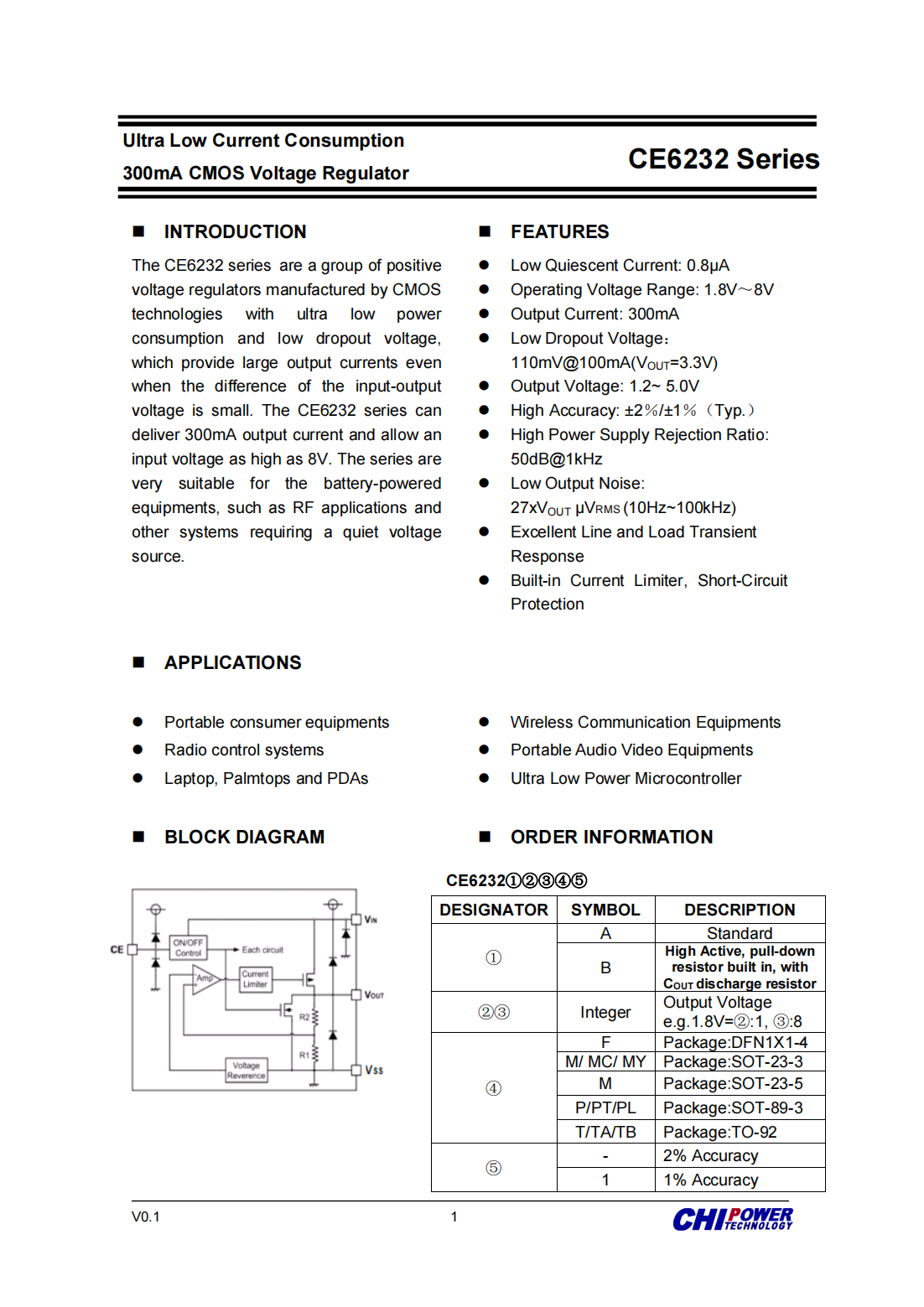

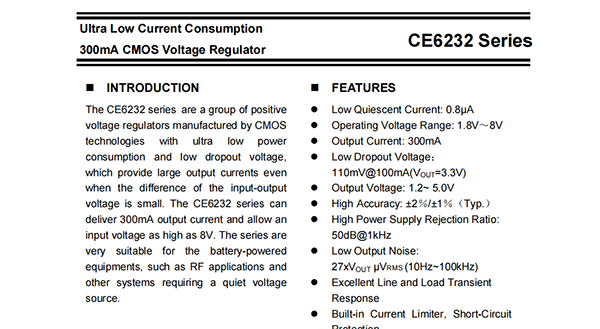

INTRODUCTION

The CE6232 series are a group of positive voltage regulators manufactured by CMOS technologies with ultra low power consumption and low dropout voltage,which provide large output currents even when the difference of the input-output voltage is small.The CE6232 series can deliver 300mA output current and allow an input voltage as high as 8V.The series are very suitable for the battery-powered equipments,such as RF applications and other systems requiring a quiet voltage source.

FEATURES

Low Quiescent Current:0.8μA

Operating Voltage Range:1.8V～8V

Output Current:300mA

Low Dropout Voltage：

110mV 100mA(VOUT=3.3V)

Output Voltage:1.2~5.0V

High Accuracy:±2％/±1％（Typ.）

High Power Supply Rejection Ratio:50dB 1kHz

Low Output Noise:27xVOUTμVRMS(10Hz~100kHz)

Excellent Line and Load Transient Response

Built-in Current Limiter,Short-Circuit Protection

APPLICATIONS

Portable consumer equipments

Radio control systems

Laptop,Palmtops and PDAs

Wireless Communication Equipments

Portable Audio Video Equipments

Ultra Low Power Microcontroller
