General Information

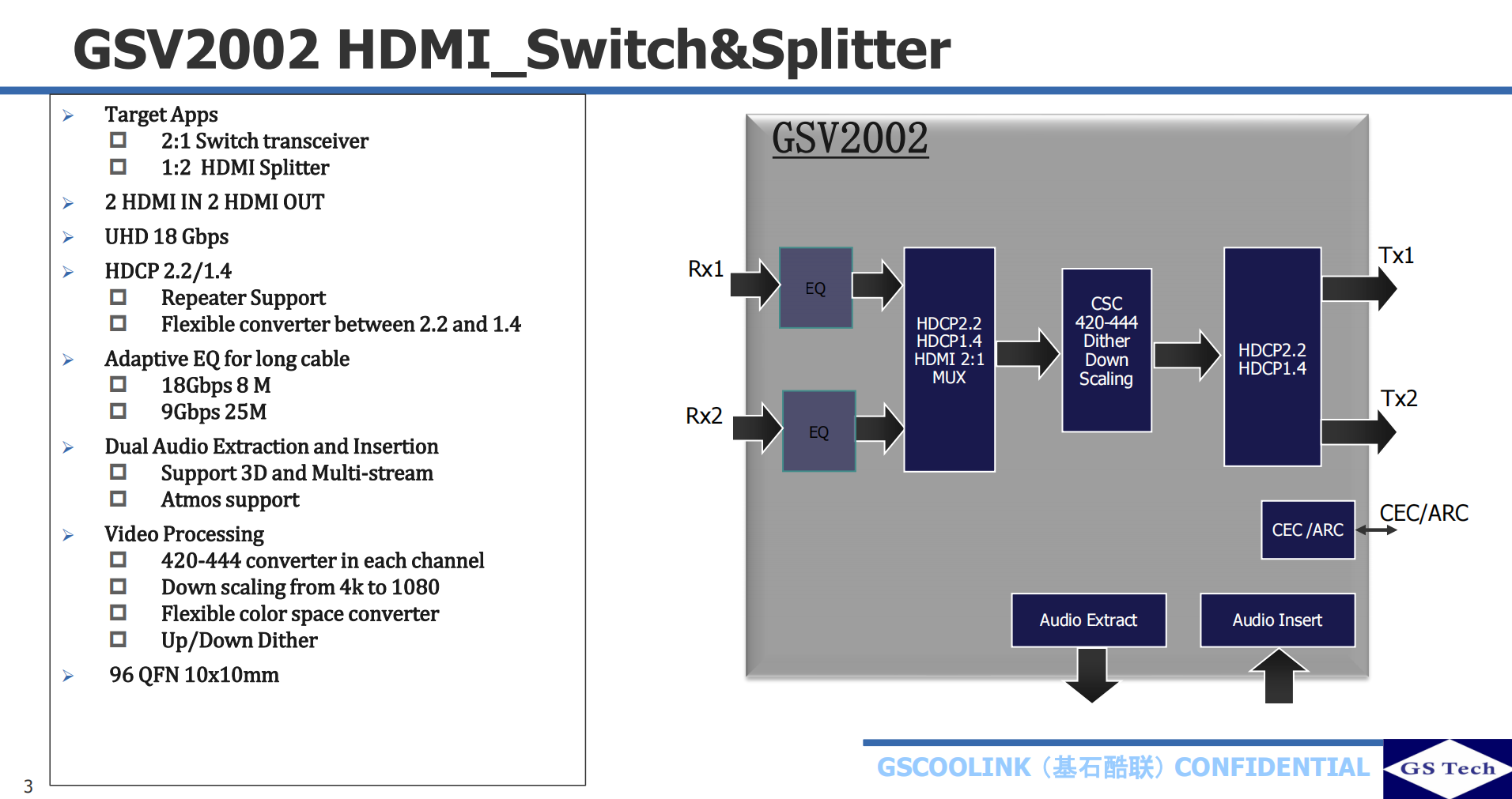

The GSV2002 is HDMI1.4/2.0 compatible,HDCP 1.4/2.2 supported,configurable 2-in-2-out repeater device.All 2 inputs are identical on receiver capability and all 2

outputs are identical on transmitter capability.GSV2002 is always in 1-in-2-out mode,the distributed video stream can be selected as either one of the 2 inputs.The HDMI input and output maximum processing pixel clock frequency is 600MHz which means the video resolution can support up to 4kx2k 60Hz 4:4:4 8-bit.The maximum processing audio sample frequency is 192K Hz for non-compression timing.

GSV2002 supports HDR10 and Dolby Vision HDR as input and output.For audio insertion and extraction,the versatile TTL pin bus of GSV2002 can be configured as either input mode or output mode regarding platform requirement.

GSV2002 can support up to 8-channel I2S or 2-channel S/PDIF,3D and multi-stream audio.In TDM mode,each audio pin supports up to 8 channels.Internal Scaler and Color Space Converter enables the input and output to be timing format independent and capable of long distance transmission.With powerful HDMI Rx equalizer and Tx pre-emphasis capability,GSV2002 can cascade itself(or GSV2000 series chips)with at least 7 stages for all HDMI 1.3/1.4/2.0 timings.

GSV2002是HDMI2.0/HDCP2.2 2x2矩阵,支持DownScaler,CSC及音频分离和音频嵌入，支持ARC及CEC功能。GSV2002目标应用：矩阵，分配器切换器,条形音响，AVR等。

功能特征

1、适用于2to2切换分配器

2、UHD 18 Gbps

3、灵活的HDCP 2.2/1.4支持

4、双路音频的提取或嵌入

5、视频处理

（1）每个通道的420-444转换器。

（2）从4K降至1080

（3）灵活的彩色空间转换器

（4）上下抖动

6、支持2路DVI/HDMI输入

7、支持2路DVI/HDMI输出

8、支持所有压缩和非压缩的音频格式

9、HDMI输入端具有自适应EQ

10、HDMI输出端具有预加重功能

可应用及方案：

1、1:2分配器

2、2:1切换器

3、2X2切换分配器

4、Crosspoint矩阵HDCP2.2加解Key

5、GSV2002+VS010/VS100 18G CSC延长

6、Soundbar 1:1，2:1 repeater
