1.1 General Information

The GSV2006 is HDMI1.4/2.0 compatible,HDCP 1.4/2.2 supported,configurable 2-in-4-out repeater device.All 2 inputs are identical on receiver capability and all 4 outputs are identical on transmitter capability.GSV2006’s 4 HDMI outputs can be independently routed from any HDMI input port.

The HDMI input and output maximum processing pixel clock frequency is 600MHz which means the video resolution can support up to 4kx2k 60Hz 4:4:4 8-bit.The maximum processing audio sample frequency is 192K Hz for non-compression timing.

GSV2006 supports HDR10 and Dolby Vision HDR as input and output.For audio insertion and extraction,2 versatile TTL pin buses of GSV2006 can be configured as either input mode or output mode regarding platform requirement.

GSV2006 can support up to 8-channel I2S,2-channel S/PDIF,3D and multi-stream audio.In TDM mode,each audio pin supports up to 8 channels.Internal Scaler and Color Space Converter enables the input and output to be timing format independent and capable of long distance transmission.With powerful HDMI Rx equalizer and Tx pre-emphasis capability,GSV2006 can cascade itself(or GSV2000 series chips)with at least 7 stages for all HDMI 1.3/1.4/2.0 timings.

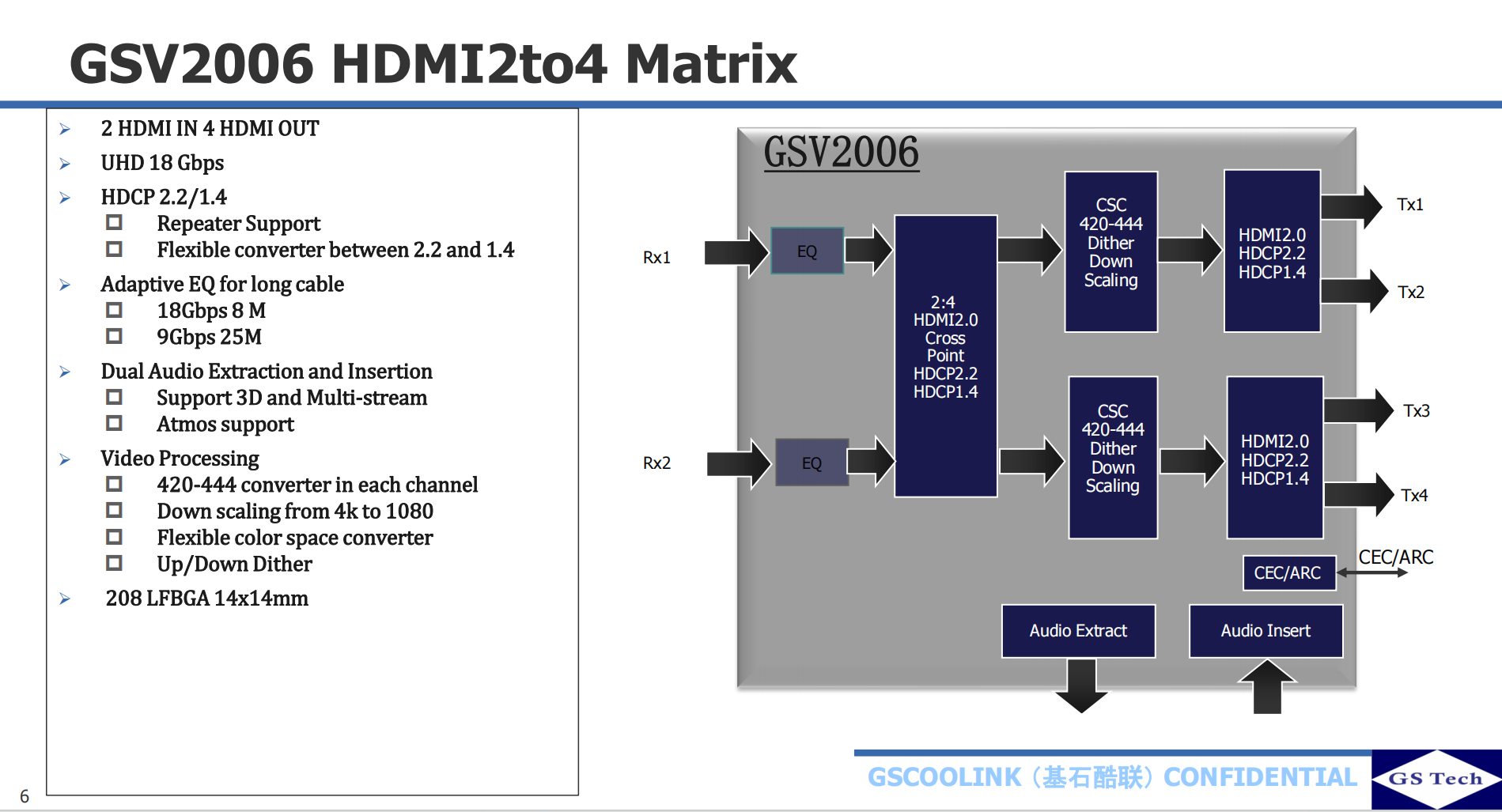

功能特征

1、2进4出

2、18 Gbps

3、灵活的HDCP 2.2/1.4支持

4、双路音频的提取或嵌入

5、视频处理

（1）每个通道的420-444转换

（2）从4K降至1080

（3）灵活的彩色空间转换器

（4）上下抖动

6、支持音频输出频率32KHz--192KHz

7、支持5V TTL电平的DDC通道

8、支持DownScaler

9、支持10/12/16位色深输入输出

10、支持CEC/ARC

可应用及方案：

1.1:4分配器

2.2:4分配器

3.2X4矩阵

4.2:8和2:10分配器GSV2006*3
