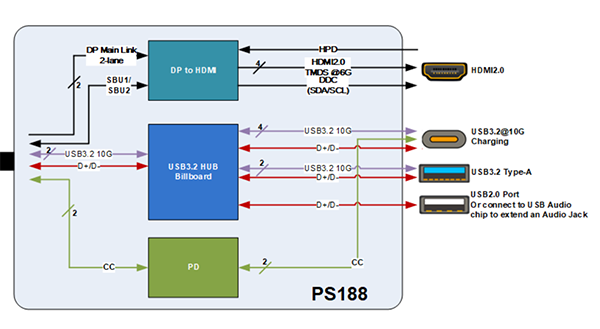

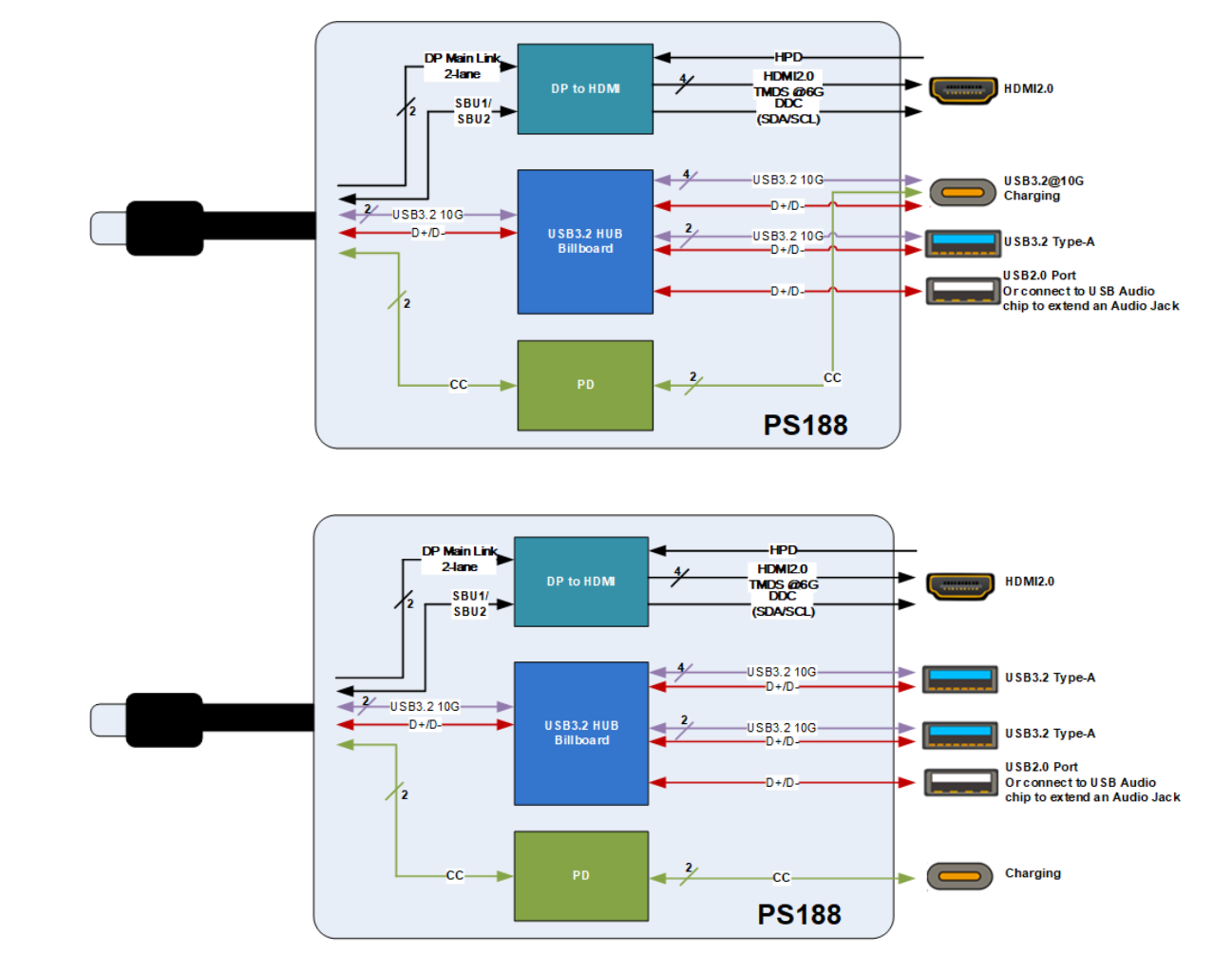

PS188 is a highly integrated USB Type-C®solution,combining a DisplayPort™1.4a to HDMI™2.0 converter,a USB 3.2 hub,and dual USB Power Delivery 3.0 controllers in a single component.PS188 supports a DisplayPort Alternate Mode(DP Alt Mode)capable USB-C upstream port.Downstream support includes one HDMI 2.0 transmitter,two USB 3.2 Gen 2 ports,and one dedicated USB 2.0(only)port.Two full-featured PD 3.0 controllers and an integrated MCU provide all needed customization and in-field maintenance via secure firmware updates.PS188 provides a single-chip solution suitable for multiple market segments and USB Type-C applications including dongles,docking stations,and other innovative products.Implementation examples:

Features

VESA DisplayPort 1.4a compliant receiver supporting DP Alt mode with link rates up to HBR3

HDMI Transmitter compliant with HDMI Specification 2.0b

Compliant to USB Specifications 1.1,2.0 and 3.2,supporting up to Gen 2×1 configuration(10 Gbps with single lane operation)

Integrated Billboard device and PD Bridge device

PD 3.0 v2.0 support for up to two Type-C ports

Firmware Security Protection

Hardware based RSA3072 signing

Hardware Based SHA-256 authentication

Downstream DCP/CDP support for BC 1.2 Specification

On-Chip MPU with external SPI ROM interface

8x12mm QFN package

Applications

Mini-dock Dongles

Mobile PC Docking Stations
